In production scenarios, unlike daily measurement and use, continuous measurement and data acquisition are required 24 hours a day to ensure the normal progress of production work. The laser rangefinder module produced for this demand can effectively deal with such problems and better cooperate with production work.

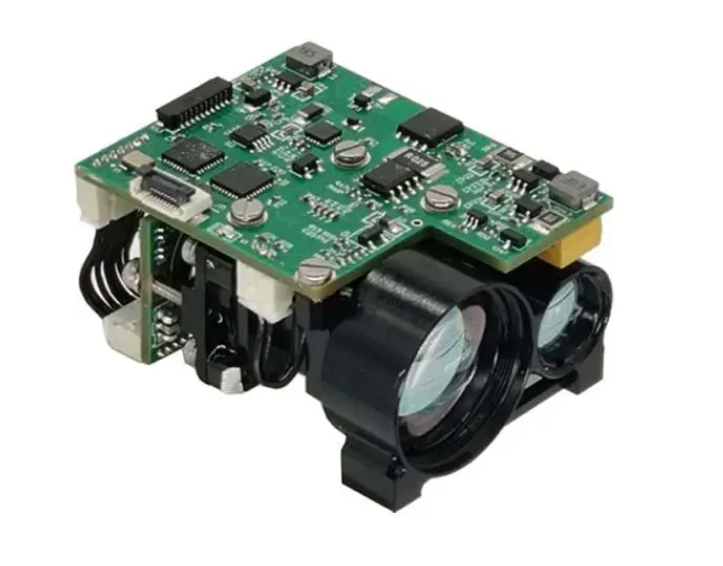

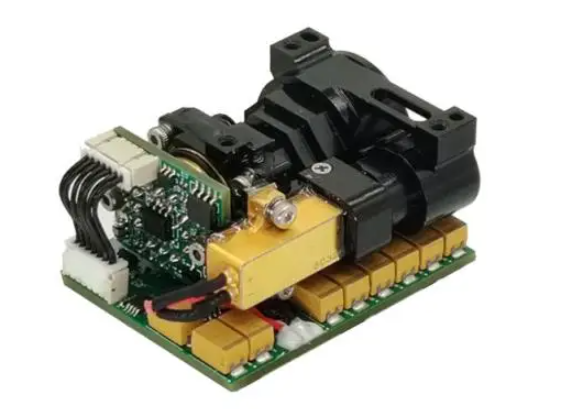

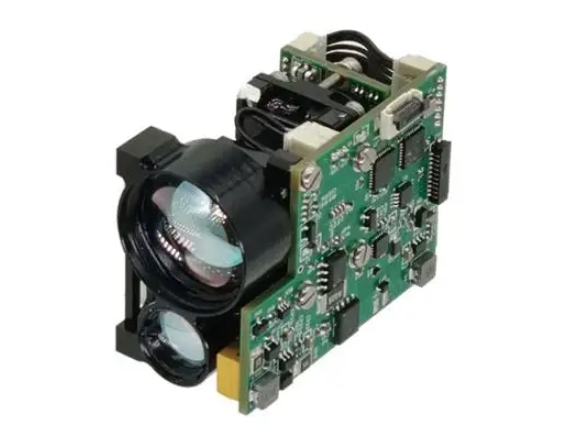

The LSP series laser rangefinder modules have a range of 5, 6, 8, and 10KM, and the distance can be customized. They can be used for secondary development and embedded in the finished products such as the laser rangefinder module produced. Among them, LSP is a 5-kilometer range model. The main functional characteristics of the device will be introduced in detail below.
The maximum range of this laser rangefinder module: Under the conditions of visibility ≥15m, moderate atmospheric turbulence, and target reflection coefficient 0.3, the measurement range of 2.3m×4.6m car or equivalent target is >5km, and the measurement range of people is >3km; the measurement range of large white buildings is >8km; the measurement range of typical reflective large targets is >10km.
Its minimum measuring range: <30m; ranging accuracy: <±1m (RMS); laser repetition frequency: 1Hz-10Hz adjustable; accuracy: >98%; laser beam divergence: <0.5mrad; ranging mode and ranging time: a) single maximum continuous ranging time: >35min, b) maximum interval time for continuous ranging again: ≤15s; laser optical axis stability: ≤0.1mrad (full temperature range); non-parallelism of laser optical axis to installation reference: <0.25mrad.
This laser rangefinder module is small and light, with low power requirements. It can be flexibly applied to various scenarios, and can also be connected to the product to use product battery power. The weight of the LSP laser rangefinder module: ≤57g; power supply voltage: DC +5V; power consumption: standby power consumption ≤1W, rated power consumption ≤1.6W, peak power consumption ≤4W; electrical interface: a) communication interface RS422/TTL communication, baud rate: 115200, data bit: 8; external connector: the host computer end uses the DF52-10P-0.8C connector to achieve cross-linking test with the DF52-10S-0.8H connector on the rangefinder end.
The LSP laser rangefinder module has a wide temperature range: operating temperature -40℃~+70℃, storage temperature -50℃~+75℃, and can cope with various weather and various production scenarios.
After normal operation, the operation can be realized through instructions: the system sends a control command to the laser rangefinder, and after receiving the command, the laser rangefinder starts to execute the command and reports the status information to the system. The main control process is as follows: When the system sends the "start self-test" command to the laser rangefinder, after the start self-test is completed, the laser rangefinder actively reports detailed start self-test result information to the system.
When the system sends the "distance measurement" command to the laser rangefinder, the laser rangefinder starts to measure the distance and reports the distance measurement status and distance value.
When the system sends the "laser stop" command to the laser rangefinder, the laser rangefinder stops the ongoing laser emission.
When the system sends the "read product identification" command to the laser rangefinder, the laser rangefinder replies with the "product identification code" within the response timeout.
Passive response timeout: 600MS; active response timeout (only when responding to "start self-test completed"): 1000MS.
