Big news! Onica's latest self-developed new photovoltaic power storage system PV-6000 recently launched! Photovoltaic power storage system is a mobile integrated product that can use clean energy (solar energy) for charging and storage. Integrating charging, storage and power supply, it is a safe, stable, environmentally friendly and portable photovoltaic power storage system, which provides stable AC and DC power output with built-in lithium-ion batteries with high energy density, and is regarded as a "large field charging treasure".
Onick PV-6000 photovoltaic power storage system is a professional field emergency power supply equipment developed by Onick R & D team in response to the national call for energy conservation and environmental protection, to solve the electricity demand of customers in professional fields in the extreme environment without grid, and adapt to Onick related products to create a whole system of product ecosystems.
01、Super Large capacity
Onick PV-6000 photovoltaic power storage system can output capacity up to 6000Wh, our PV-6000 photovoltaic power storage system uses Ningde times ultra-low internal resistance cell, ternary lithium battery, high efficiency inverter, internal wire all use high-quality American standard copper wire, comprehensively reduce internal power loss. The propaganda parameters are all the actual measurement results, not according to the cell capacity of the virtual label, the label is obtained.
You may not have a concept of 6000Wh (6 KWH)... Let's talk about what 6000Wh (6 KWH) can do.
02、Super Power
The PV-6000 photovoltaic power storage system not only has a high capacity, but also carries a stable load of 5000W of electrical equipment. 5000W peak power The actual rated power is about 2200W, and the actual carrying capacity is about 2000W. 5000W rated power The actual peak power is about 10000W, and the actual load capacity is about 5000W. What can 5000W power do?
03 、Super Fast Charge
The Onick PV-6000 can simultaneously use multiple 36V photovoltaic panels to charge the device at the same time, supporting a maximum total power of 900W, and the charging efficiency is the same as the mains fast charge under ideal weather conditions. About 6 hours to fill.
04 、Exclusive embedded management software
The PV-6000 photovoltaic power storage system comes with Onick's exclusive embedded management software, which can display real-time power, working temperature, charging animation, charging and discharging power and real-time voltage of each cell. Onick's exclusive development of embedded management software has also created the relevant algorithm logic to solve the industry problem of inaccurate power display when charging and discharging lithium battery-related products. Charge and discharge performance of our products: the power display is stable, and the real-time power of charge and discharge is accurately displayed.
05 、Multiple protection is safe and robust
We use BMS battery management and protection system and focused MPPT photovoltaic controller, with intelligent temperature control fan, real-time monitoring of equipment operation, to achieve multiple intelligent protection.
BMS seven functions: over charge protection, over discharge protection, over voltage protection, over temperature protection, off-line protection, short circuit protection, balanced voltage;
Inverter seven protection: overload protection, low voltage protection, over voltage protection, leakage protection, over current protection, short circuit protection, high temperature protection;
Intelligent temperature control fan: The fan does not work in the standby low temperature state, which saves power and is quieter. When the temperature of the equipment is too high, the fan automatically works to strengthen heat dissipation and extend the service life of the product;

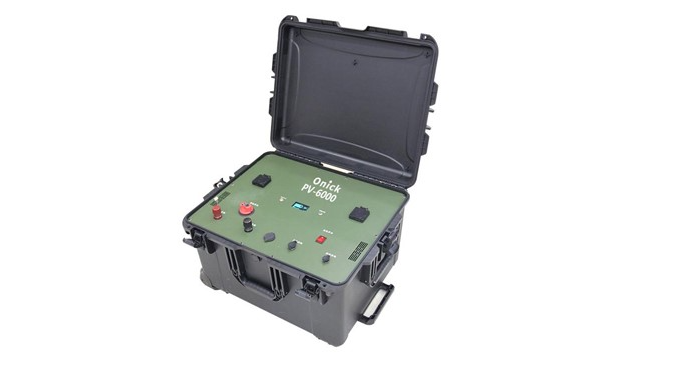

The shell is made of high quality PP material, which has good flame retardant, toughness and anti-static ability. The average wall thickness is over 5mm. The surface is matte and matted, which is not easy to leave scratches when using. Use stainless steel hardware to connect the hinges. Can bear 150kg, waterproof, shock-proof, dust-proof, anti-impact, anti-corrosion, high and low temperature resistance. With automatic pressure balancing valve, can adjust the pressure difference inside and outside the box, easy to open the box and waterproof.
PV-6000 photovoltaic power storage system is small, light weight, suitable for mobile use of electricity scenarios, combined with the use of solar panels can be quickly charged, so it is widely used in outdoor activities and emergency disaster relief. Can be used in emergency rescue and rescue, emergency repair, surveying and maintenance, emergency backup electricity, military communications, pull exercise, portable outdoor power supply can adapt to a variety of harsh working environment, widely used in communications, aviation, aerospace, military, railway, electricity, outdoor camping, remote area power supply, camping in no man's land, wild fishing, car lighting and other scenes.
