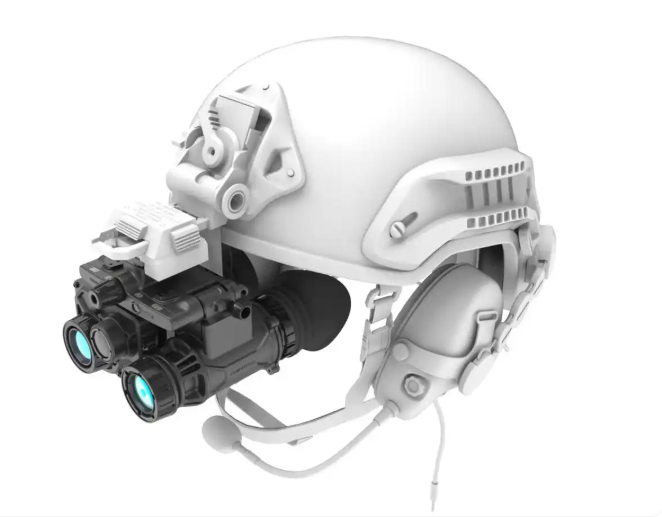

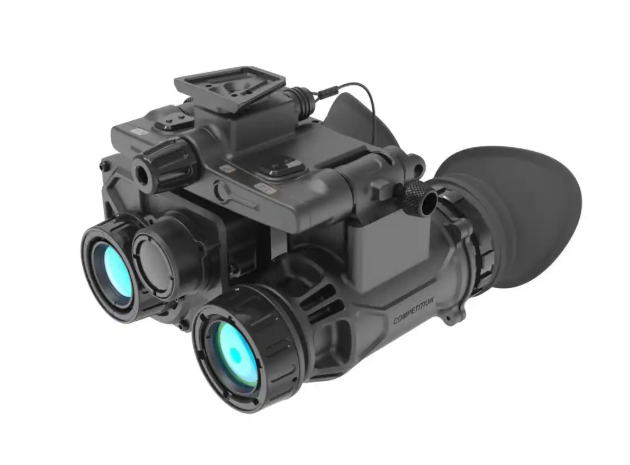

The Onica RH-6B is a multi-functional dual-light fusion thermal imaging system. It employs infrared and low-light fusion technology, resulting in higher imaging resolution and easier identification of individual targets. It also overcomes the limitation of single-infrared sensors not penetrating glass. Furthermore, it features fusion focusing (picture-in-picture) functionality, allowing for magnification of single points while maintaining high clarity. It can be used for observation and target search in low-light, adverse, and complex conditions, including nighttime, dimly lit, and challenging environments. Featuring third-generation high-definition low-light night vision, it offers rapid target acquisition, low power consumption, and long battery life. It is suitable for various fields such as law enforcement, outdoor hunting, wilderness exploration, and search and rescue.
II. Product Features
1. It possesses next-generation night vision fusion technology. Binocular stereo imaging and thermal imaging technology enable users to quickly identify targets and differentiate threats. When paired with external devices, it achieves rapid target acquisition (RTA) and augmented reality (AR) functions, enhancing situational awareness and self-protection capabilities.
2. It combines the advantages of low-light and thermal imaging, offering multiple observation modes to better meet the observation needs of different scenarios and personnel;
3. It provides richer information, more perfect details, easier scene understanding, and a longer effective detection and identification distance;
4. Targets are more clearly visible, facilitating faster and more accurate target detection in concealed or camouflaged environments, particularly noticeable in enhanced night vision mode;
5. The observed images are more natural and conform to human eye habits, significantly improving target recognition performance and reducing eye fatigue;
6. It meets all-weather operational needs, allowing observation and use in darkness, completely dark enclosed environments, and adverse weather conditions;
III. Technical Parameters
Optical Specifications
Low-light Magnification: 1×
Infrared Focal Length: 16mm
Focal Length Range: 25cm ～ +∞
Low-light Field of View: 40°
Infrared Field of View: 25.9°×20.9°
Exit Pupil Distance: 25mm
Diopter: +2/-4
Performance Specifications
Low-light Image Tube: 2nd Generation / 3rd Generation Optional Accessories
Infrared Thermal Imaging: 640×512-12μm
Display Modes: Incandescent, Highlight, Contour
Quick Target Acquisition: Supported
Sensor Information Display: Supported
Flip-Up to Power Off: Supported
IPD Adjustment: Supported
Location and Navigation: Supported
Overall Information
Dimensions: 107×115×85mm
Protection Rating: IP67
Weight: 525g (Glasses Body) / 320g (Battery Pack + Cable)
Battery Life: 8H (Infrared Fusion), 100H (Single Low-Light)
Power Supply: External Battery
Bluetooth Control: Supported
Interface Type: L4G24
Accessories: Main Unit, Cable, Battery Compartment, Helmet Mount
Helmet: Optional
