Empowering Firefighters with a New Vision for Safer Rescue Operations

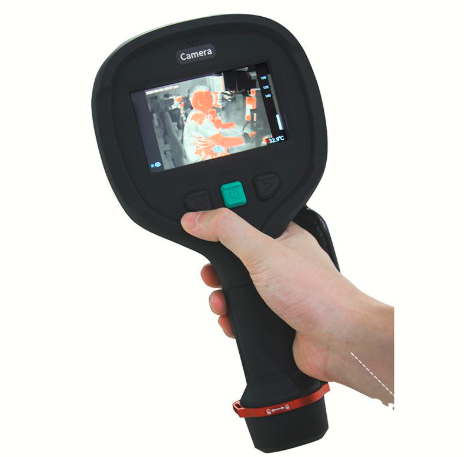

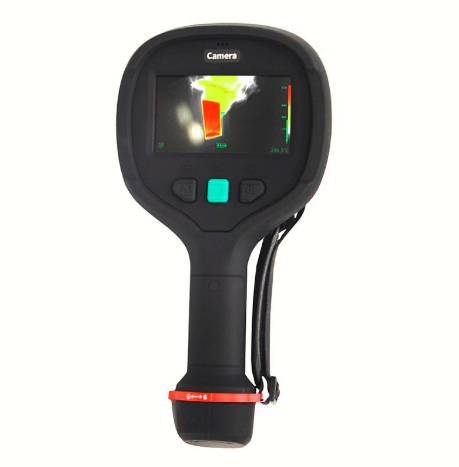

Onick proudly introduces the IF384 Firefighting Infrared Thermal Imaging Camera, a dual-purpose device designed for both rescue and inspection in extreme fireground environments. Built with advanced thermal imaging technology and certified intrinsic safety explosion-proof standards, the IF384 delivers unmatched visibility and reliability when it matters most.

Engineered to perform in high-temperature, high-humidity, and smoke-filled conditions, the IF384 enables firefighters to clearly visualize surroundings, accurately locate fire sources, and efficiently identify trapped individuals—significantly improving both operational efficiency and safety.

Key Features

1. Smooth & Clear Imaging Experience
Equipped with a 60Hz frame rate and an anti-reflective display, the IF384 ensures fluid, high-definition thermal visuals even in dynamic rescue scenarios.

2. Ultra-Wide Temperature Measurement Range
Supports a wide detection range from -40°C up to 2000°C, with intelligent auto-ranging, temperature analysis, and over-temperature alarm functions.

3. Extreme Durability for Fireground Conditions
Designed for harsh environments, the device operates fully for up to 5 minutes at 260°C, with IP67 protection and 2-meter drop resistance.

4. Real-Time Image Transmission for Command Efficiency
Compatible with 4G/5G communication modules, enabling live video transmission to command centers for better coordination and decision-making.

5. Versatile Functional Accessories
Includes docking station for charging and data transfer, hands-free lanyard system, and optional visible light module for enhanced operational flexibility.

Application Scenarios

Fire Detection & Assessment
Quickly identify fire sources and track fire spread direction through real-time thermal imaging.

Fire Suppression Support
Detect high-temperature zones, hidden fire points, and accumulated heat for precise firefighting.

Search & Rescue Operations
Locate trapped victims rapidly in dark, smoke-filled environments, saving critical time.

Fire Prevention Inspection
Analyze temperature distribution and store thermal data for preventive safety inspections.

Certifications & Compliance

• Explosion-proof certification: Ex ia IIC T4 Ga (Intrinsic Safety Standard)

• Certified under XF/T635-2023 Firefighting Industry Standard (Official test report)



Technical Highlights

• Infrared Resolution: 384 × 288 @ 12μm

• Detector Type: Uncooled VOx (7.5–14μm)

• NETD: 45mK

• Lens: 9mm, 50° × 37° FOV

• Display: 4.3” LCD (800×480)

• Storage: Built-in 128GB

• Laser Rangefinder: Up to 600m

• Battery Life: Up to 4 hours



A Smarter, Safer Firefighting Solution

With its combination of high-resolution imaging, intelligent temperature analysis, rugged design, and real-time connectivity, the Onick IF384 sets a new benchmark for firefighting thermal imaging devices.

It is not just a tool—but a mission-critical solution that enhances situational awareness, improves rescue success rates, and ensures firefighter safety in the most challenging environments.
