The Onick CI Series Long-Range Binocular Laser Rangefinder has been fully upgraded and is protected under Patent Application No. 202030826525.7. By integrating advanced optical systems, electronic laser ranging technology, and intelligent data management, the CI Series enables fast measurement, automatic focusing, and high-precision data recording in long-distance environments.
It is widely applied in river and waterway surveying, power and cable inspection, geological measurement, meteorology, airports, forestry, and other professional fields.
Accurate Ranging, Efficient Operation
The Onick 10000CI Binocular Laser Rangefinder achieves high-precision measurements of up to 10,000 meters without the need for reflective targets, with an accuracy of ±0.5 m.
An integrated Average Measurement Function (AGV) automatically calculates the average value of multiple measurements, ensuring stable and reliable results.
The device supports data storage and review, with capacity for up to 1,000 measurement records. Data can be transferred quickly via RS232 interface, Bluetooth, or PDA connection to a computer, enabling efficient data transmission and management.
Optional azimuth and elevation angle functions provide horizontal distance, vertical distance, and angular information. The azimuth range supports 0–360°, while the elevation angle range is ±45°, significantly improving operational efficiency in complex terrain, long-distance surveying, and engineering measurement tasks.
Optical and Laser Technology Advantages
Receiver Aperture: Φ30 mm, high-sensitivity design for clear long-range observation
Magnification: 7× binocular optics with a 6.5° field of view
Laser Wavelength: 1.064 μm (Nd:YAG laser)
Laser Output Energy: ≥5 mJ
Laser Lifetime: ≥20,000 operations
The high-performance optical system combined with precision laser ranging technology enables the Onick 10000CI to deliver accurate long-distance measurements in field surveying, forestry investigation, and construction applications. Stable observation and ranging performance is maintained even under complex lighting conditions.
Reliable, Durable, and Portable
The Onick 10000CI features a compact and lightweight design, weighing only 1 kg. Its rugged housing is dustproof, waterproof, and shock-resistant, allowing reliable operation in environments ranging from –20°C to +60°C.
Powered by two 18650 lithium batteries, the device supports more than 3,000 measurements under normal conditions, meeting the demands of extended outdoor operations.

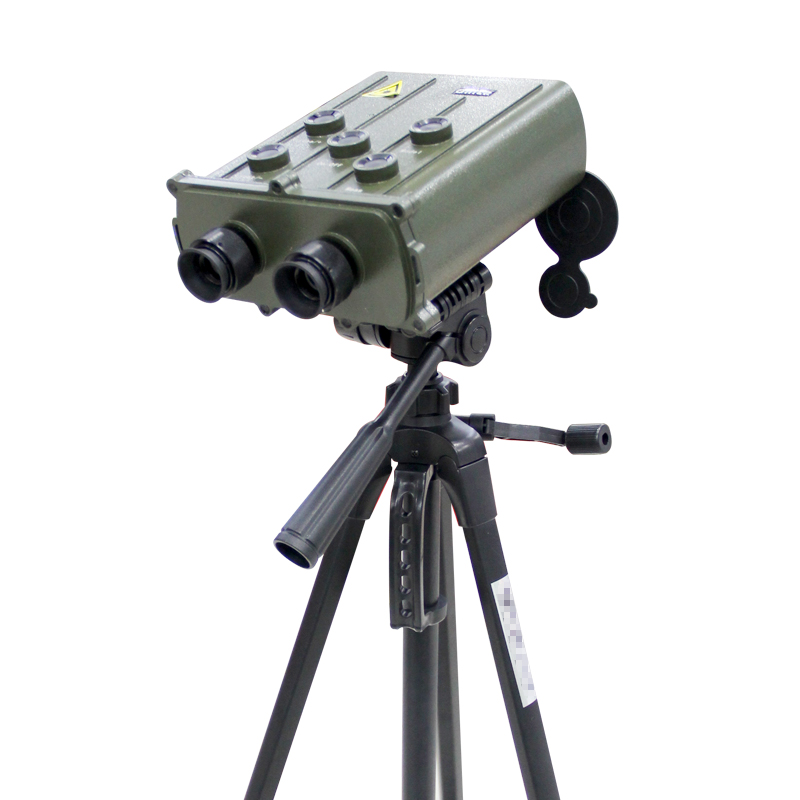

A standard 1/4-inch mounting thread allows the device to be mounted on a tripod or connected to a theodolite, supporting multiple operating modes and remote-triggered measurements.
Multi-Scenario Applications – A Professional Choice
With high-precision ranging, angular measurement, and data management capabilities, the Onick 10000CI is widely used in the following applications:
Power & Telecommunications: River crossings, overhead lines, cable inspection
Geology & Surveying: Mountains, forests, airports, and road measurement
Scientific Research & Meteorology: Field observation and meteorological data collection
Outdoor & Security: Camping, mountaineering, long-range observation, and security patrols
The Onick 10000CI Binocular Long-Range Laser Rangefinder has become a trusted choice for industry professionals. Whether for scientific surveying, engineering construction, or outdoor exploration, it delivers fast, accurate, and stable measurement performance to support demanding operations.
Industry Value
More than just a rangefinder, the Onick 10000CI is a professional long-range measurement solution. With high-precision ranging, data storage, and remote data transmission capabilities, users can efficiently complete long-distance, high-accuracy measurement tasks while reducing manual measurement errors.
Its compact and durable design ensures stable performance across various environments, making it a reliable choice for professionals in scientific research, surveying, engineering, forestry, power utilities, and security applications.
With precision measurement, multifunctional operation, and proven durability as its core strengths, the Onick 10000CI Binocular Long-Range Laser Rangefinder meets the measurement needs of professional users across diverse scenarios and provides strong technical support for field operations and engineering surveying.
