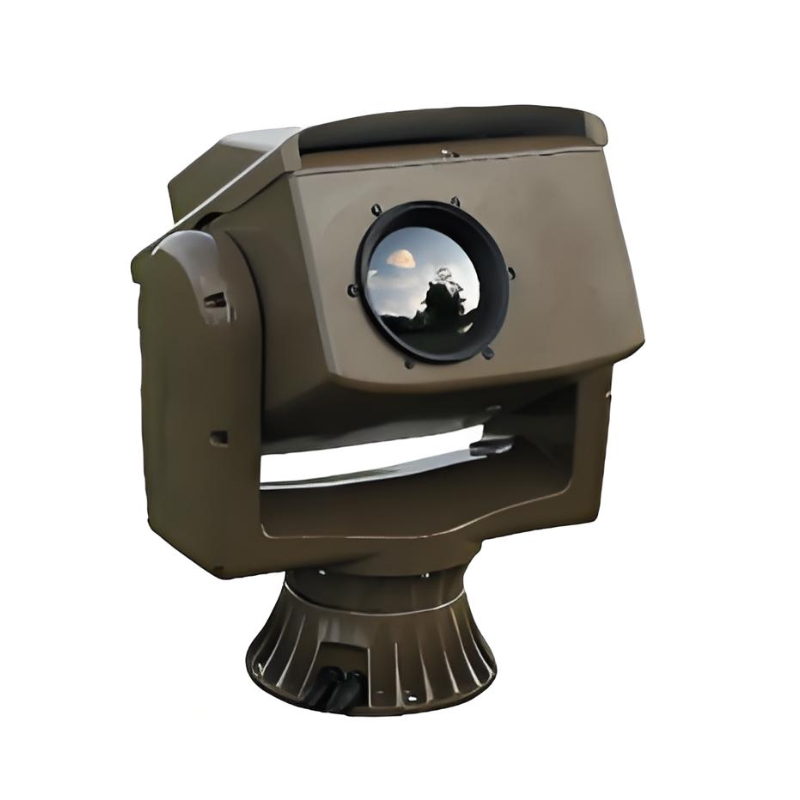

Onick FZS360 panoramic infrared equipment integrates surveillance, search and tracking, and integrates an uncooled infrared thermal imager, which can conduct surveillance, search and tracking of air, surface and ground targets.

Introduction to product features:

Single-soldier portable; automatic tracking;

360° alert; target identification;

infrared imaging; target navigation;

alert area setting; fault diagnosis.

Product functions:

1. Adopt the latest generation of 12um uncooled infrared detectors or high-performance medium-wave cooled infrared detectors, integrated with leading infrared imaging algorithms, imaging farther and clearer.

2. Can track up to 128 targets at the same time, and provide real-time alarm and trajectory tracking for intrusion targets such as people, vehicles, ships, drones, etc. within a detection radius of up to 8km.

3. The system can link visible light equipment to track and enlarge the intrusion targets, automatically collect intrusion target image information, and visualize it once it is found, providing powerful reference information for decision-making and command personnel.

4. Intelligently identify people, vehicles, ships, and drone targets, and integrate AIS and GIS information to remove and superimpose targets, filter clutter information, and accurately detect intrusion targets

Product highlights:

1. Automatic warning and full-course tracking of intrusion targets

The infrared panoramic radar system has a maximum detection radius of 5000m for large targets (B75 target aircraft, 2m wingspan), a maximum detection radius of 1000m for small targets, and a detection radius of 2km for small ground vehicles. The system can form a large intrusion target warning buffer outside the area, realize large-scale and long-distance automatic detection and early warning of intrusion targets, thereby providing more time for intrusion target review and disposal.

2. Intelligent detection mechanism, convenient for customers to use flexibly

Customize monitoring areas, set different algorithms according to different monitoring areas, and reduce false detection and missed detection. The monitoring area can be saved, and the saved area can be imported when the software is run for the second time, without repeated settings.

3. Real-time dynamic perception, WYSIWYG

The maximum 1.6S per week 360° panoramic imaging frame rate and WYSIWYG detection method can realize the integrated monitoring of static environment and dynamic targets and the integration of automatic detection, tracking, identification and verification of intrusion targets, so as to have the ability to know the scene in real time and perceive threats, and solve the problem of poor real-time linkage between traditional intrusion alarm system and video surveillance system. The radar map 360° screen display is different from the traditional radar that can only provide intrusion target coordinate information and display it as a "point". The infrared panoramic radar adopts the WYSIWYG monitoring method to display the 360° monitoring screen in real time, which can not only detect the target, but also see the target, greatly improving the dynamic perception ability.

4. Large monitoring range, convenient equipment installation and maintenance, strong portability

A panoramic infrared radar can achieve the coverage, working distance and panoramic imaging resolution of multiple infrared thermal cameras, while reducing the number of equipment and reducing the complexity of the system. Therefore, the system has a high cost performance and low operation and maintenance cost, and is convenient for transformation, migration and reuse caused by the adjustment of the fence in the later stage, so it has good mobility.

5. Real-time target coordinates calculation

The system has the ability to locate the target. After tracking the target, the rangefinder measures the target distance information in real time, combines the heading angle and pitch angle of the radar pointer, and uses its own coordinates to calculate the target coordinates in real time.

Application areas:

single-soldier portable, vehicle-mounted or land-based platform, key point security, perimeter surveillance, air surveillance, anti-UAV, etc.
