Products Description

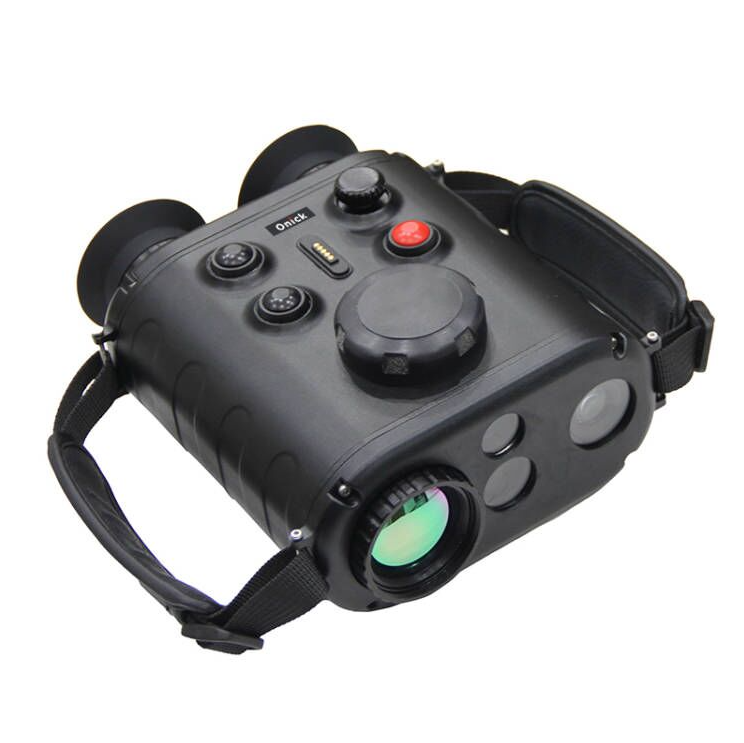

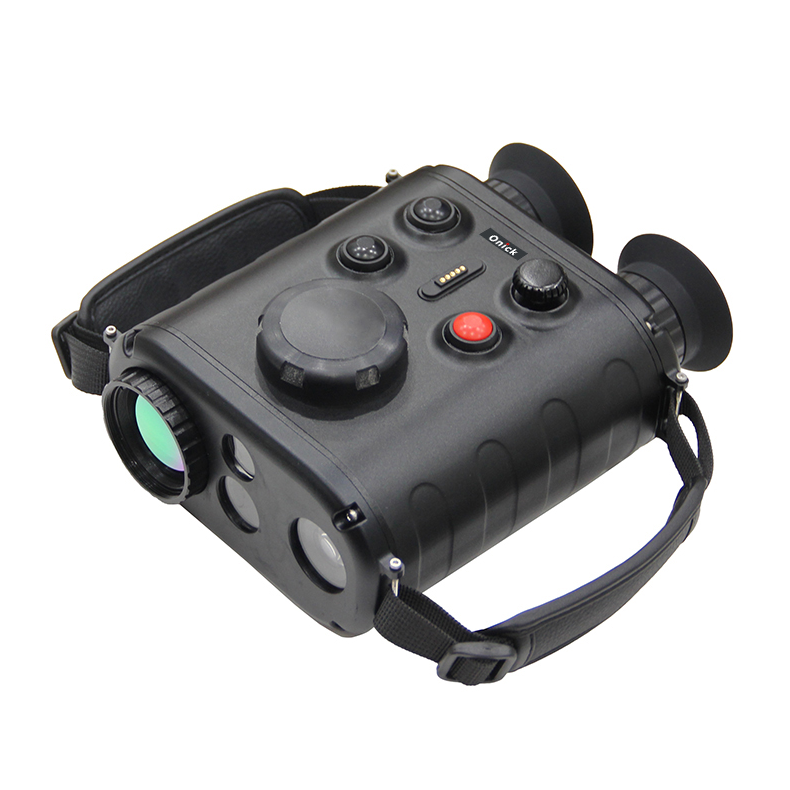

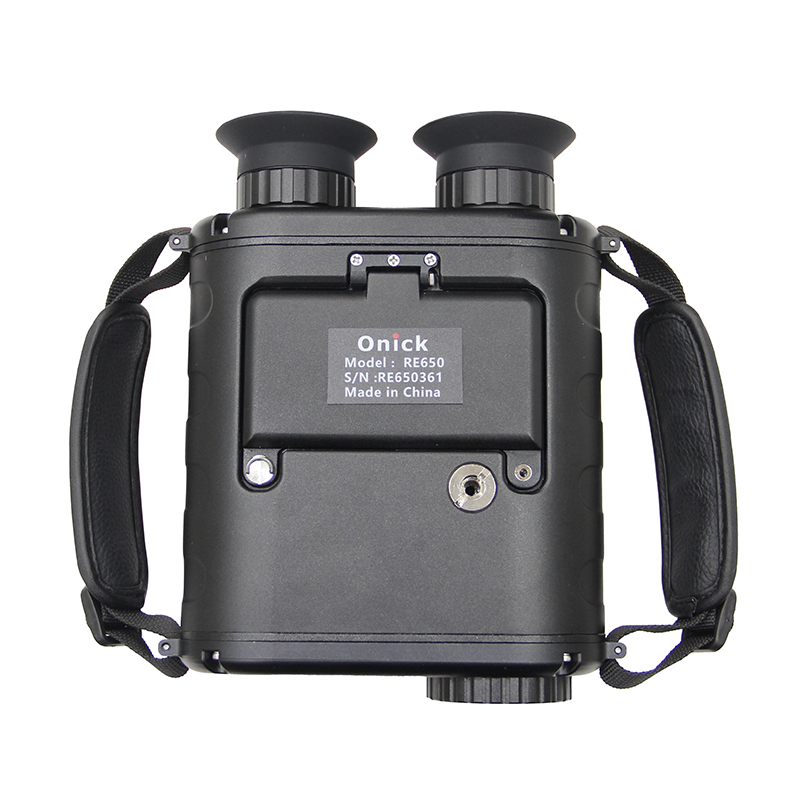

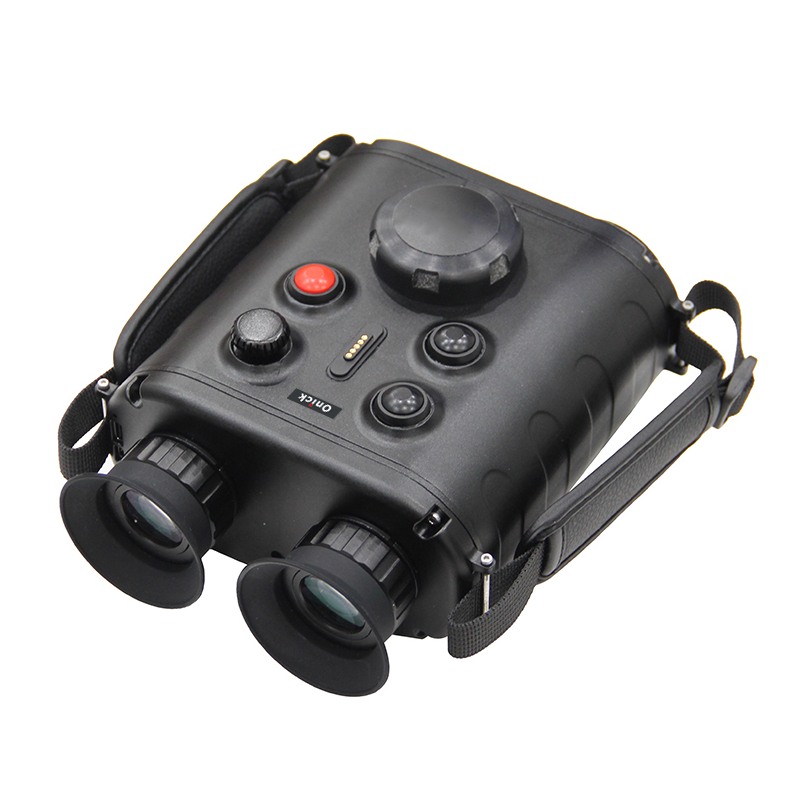

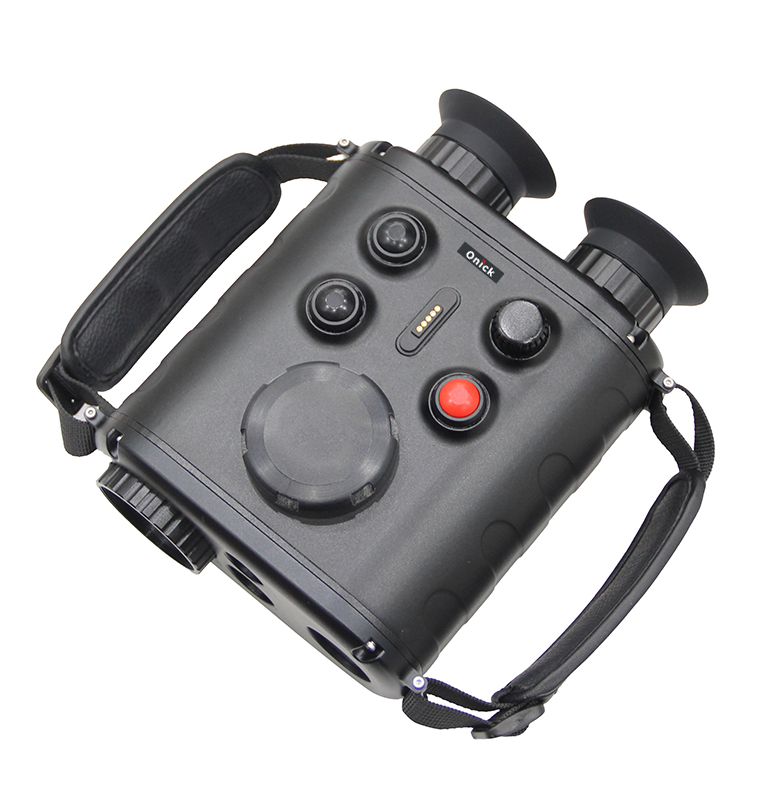

Onick RE650 is a handheld three-light thermal imaging observation and reconnaissance instrument equipped with a TV camera, uncooled infrared thermal imager, laser rangefinder, GPS, electronic compass and other functions. It can be used for all-weather day and night reconnaissance, target positioning, etc. The product has good infrared imaging effect, and is small and light, low power consumption, simple control, light and portable appearance, and has a good grip. The product uses a high-resolution infrared sensor, has good infrared imaging effect, ultra-low power consumption, fast startup, simple control, compact and stable structure.
Main functions:
1. Infrared and white light imaging, binocular observation, image and video storage;
2. Electronic zoom 1.0×~8.0× stepless zoom, step 0.1×;
3. Laser ranging, Beidou positioning, compass orientation, target positioning, trajectory calculation function;
4. Reserved expansion interface, can be connected to humidity sensor, anemometer, etc.;
5. With fog penetration, roll angle, pitch angle, altitude, air pressure sensor, fault diagnosis function;
6. AI recognition function of human and vehicle targets; lock and identify drones；
Application fields
Applicable to low-altitude economy, emergency rescue, anti-terrorism, reconnaissance, border defense, drug control night vision, border patrol, border inspection station monitoring, water search and rescue, prison monitoring, night vision patrol, epidemic prevention, etc.
Technical parameter
Product model: Onick RE 650 three-light
Infrared thermal imager
Detector: 640×512, 12um vanadium oxide uncooled focal plane array
Lens: 35mm, F1
White light camera
Detector: 3840×2160, 1.5μm color CMOS
Lens: 35mm, F1.8;
Laser rangefinder
Wavelength: 905nm;
Range: 10~3500m;
Distance accuracy: ±0.2m;
Distance mode: supports single distance measurement and continuous distance measurement;
Display
Display: 0.39-inch OLED
Resolution: ≥1024×768
Optical magnification: 15x
Electronic zoom: 1.0x~8.0x stepless zoom, step 0.1x
Eyepiece diopter: -4D~4D
Storage: built-in 32G memory, storage of ≥20,000 pictures, ≥4 hours of video
Storage capacity display: support, displayed in the upper right corner of the screen
Battery display: support, displayed in the upper right corner of the screen, full grid 3 grids, device battery is lower than 10% is displayed in red
Time display: Supported, the format is "year-month-day-hour-minute-second"
Target ranging: Supported, yellow means ranging is not turned on or ranging is invalid, white means normal ranging or ranging distance is valid
Infrared brightness adjustment: Supported
Infrared enhancement adjustment: Supported, the infrared enhancement level can be adjusted, with a total of 1, 2, 3, and 4 levels
Positioning module
Beidou positioning: Supported, the device position is displayed in longitude and latitude in turn, W: West longitude, E: East longitude, N: North latitude, S: South latitude, H: Altitude
Compass orientation: Yes
Target positioning: Supported, the target position is displayed in longitude and latitude in turn, W: West longitude, E: East longitude, N: North latitude, S: South latitude, H: Altitude
Ballistic solution: Supported
AI recognition: AI recognition of human and vehicle targets
Lock and identify drones: Supported, can automatically lock and identify drones
Fog penetration: Supported
Air pressure sensor : Support
Horizontal angle, roll angle, pitch angle: Yes, horizontal angle: range 0-360°; pitch angle: ±180°; roll angle: ±180°
Current ambient temperature display: Support
Fault diagnosis: Support
External interface
Video output: HDMI
Image and video export: USB
Working time: not less than 4 hours (normal temperature)
Size: 187.5*135*78.9mm
Weight:≤1.2kg
Environmental adaptability
Working temperature: -20℃~50℃
