Products Description

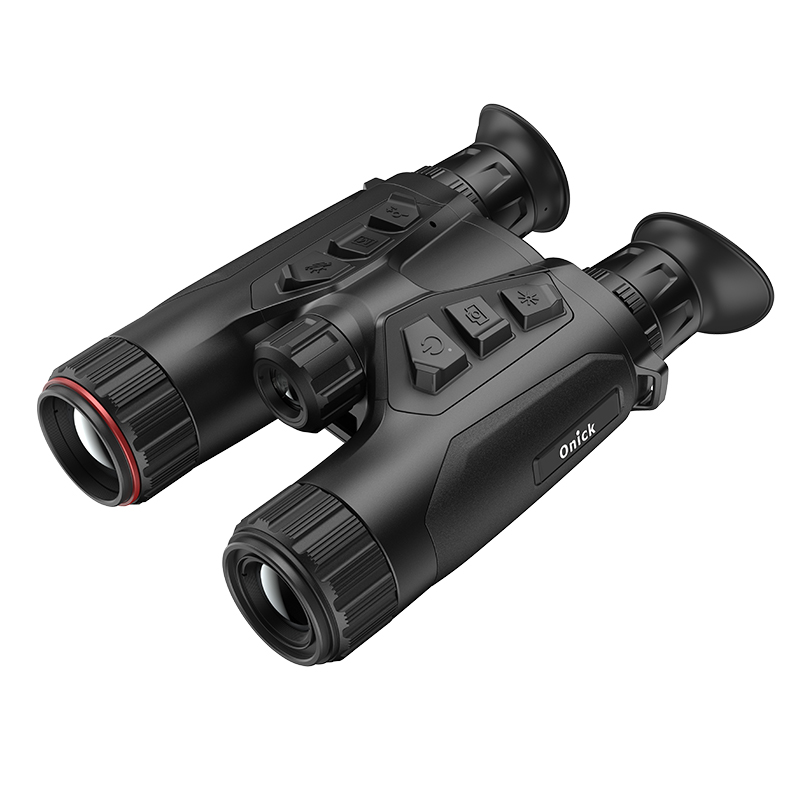

Onick RE652 binocular thermal imager is equipped with 640 x 512@12um thermal detector and 2560 x 1440 optical detector. NETD＜20mK (high thermal sensitivity), ensuring perfect image quality and detail recognition even in the worst weather conditions. 1000m laser rangefinder can accurately measure distance in low light conditions.
Product Features:
1.640 x 512 resolution @12μm thermal detector
2. High sensitivity heat dissipation module NETD < 20 mK (@25°C, F# = 1.0)
3.35mm, F1.0 lens, detection distance up to 1800m
4.2560 x 1440 high resolution CMOS detector
5.1920 × 1080 resolution 0.49 inch OLED display
6.Built-in 850nm infrared illuminator and laser rangefinder with 1000m measurement distance
7.6h+ continuous operation
8.780g lightweight, compact, ergonomic design
Application areas:
Widely used in nature observation, search and rescue, bird watching, animal search, rescue scene outdoor adventure, marine operations, night patrol, personal security, etc.
Technical parameter
| Thermal imaging | |
| Image sensor | VOx uncooled focal plane array |
| Maximum resolution | 640 x 512 |
| Frame rate | 50 Hertz |
| Pixel spacing | 12 micron |
| Response band | 8μm to 14μm |
| NETD | Less than 20 mK |
| Lens (focal length) | 35mm, F1.0 |
| Focusing mode | Manual focusing |
| Detection distance | 1800 m |
| Minimum focusing distance | 3.5 m |
| Blow up | 3.0-24 (8x) |
| Field of view (H×V) | 12.5° x 10.1° |
| Visible light | |
| Image sensor | 1.88-inch progressive scan CMOS |
| Maximum resolution | 2560 x 1440 |
| Focus Distance | 31mm, F1.2 |
| Minimum working distance | 3m |
| Minimum illumination | 0.001 lux |
| Focusing mode | Manual focusing |
| Blow up | 2.9-23.2 (8x) |
| Field of view (H×V) | 13.9° x7.8° |
| Intelligent infrared fill light | There are |
| Night range | 400 m |
| Image display | |
| reveal | 0.49 inch, OLED, 1920×1080 |
| Color palette | Black heat, white heat, red heat, fusion; Optics: Day, night, automatic |
| FFC (Flat Field Correction) mode | Automatic, manual, external correction |
| Diopter (range) | -5D~+3D |
| Brightness control | There are |
| Tone adjustment | Cold, warm |
| Contrast adjustment | There are |
| System | |
| Record video | There are |
| Take a picture | There are |
| Recorded AT | There are |
| Standby mode | There are |
| store | Built-in EMMC (64 GB) |
| Hot spot tracking | There are |
| Electronic compass | There are |
| GPS | There are |
| Local album | There are |
| Power source | |
| Battery type | Replaceable and rechargeable lithium-ion batteries |
| Battery operating time | ≥6h (25°C, hot spot off) |
| Type-C power supply | 5V DC, 2 A |
| Support external power supply | |
| routine | |
| Class of protection | IP67 protection rating |
| dimension | 138.2 mm x 68.4 mm x 212.4 mm |
| Operating temperature | -30°C ~ +55°C |
| weight | 780g (without battery) |
| Range of pupil distance adjustment | 60 mm to 74 mm |
| Install adapter | 1/4“-20-UNC |
| Laser rangefinder | |
| Laser safety class | Class 1 |
| Wave length | 905nm |
| Maximum measuring distance | 1000m |
| Measurement accuracy | ±1 m |
| Minimum measuring distance | 10m |
| Infrared complement | |
| Infrared wavelength | 850 nm |
| Beam Angle | Adjustable 7.6-11.5° |
