The main function of thermal imaging night vision devices at night is to use the difference in heat emitted by the object itself to form an image, so that targets and obstacles can be clearly identified in a completely dark environment.
Generally divided into two types: passive and active:
Passive thermal imaging night vision device: This type of night vision device does not emit infrared rays, but relies on the infrared radiation of the target itself to form a "thermal image". It forms an image by detecting the difference in heat emitted by the object, so it is also called a thermal imager. Passive thermal imaging night vision devices can also work effectively in a completely dark environment because it does not require an external light source.
Active thermal imaging night vision device: This type of night vision device uses an infrared searchlight to illuminate the target and then receives the reflected infrared radiation to form an image. Although active night vision devices require an external light source, they can still provide clear images in harsh environments such as rain and fog because they are not affected by external light.
Application scenarios and advantages of thermal imaging night vision devices: Thermal imaging night vision devices are widely used at night, especially in complex environments:
1. Adaptability to complex environments: Whether it is dark, rainy, foggy or mountainous roads, thermal imaging night vision devices can accurately identify heat source targets such as people, cars and animals.
2. Early warning: With the ability of early warning, drivers can make judgments before potential dangers occur and avoid accidents.
3. Multi-mode switching: Supports three visual mode switching of visible light, infrared imaging and dual-light fusion to adapt to different light environments.

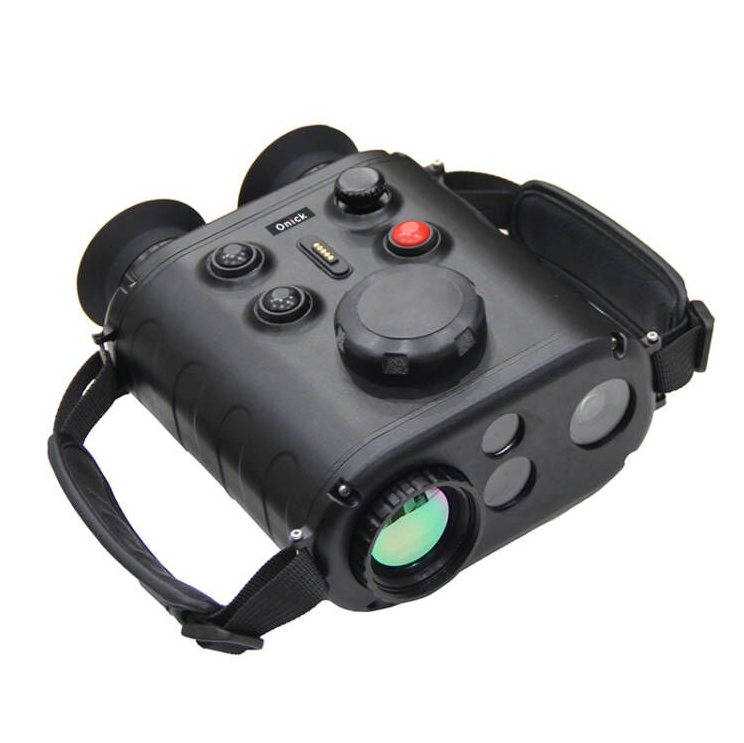

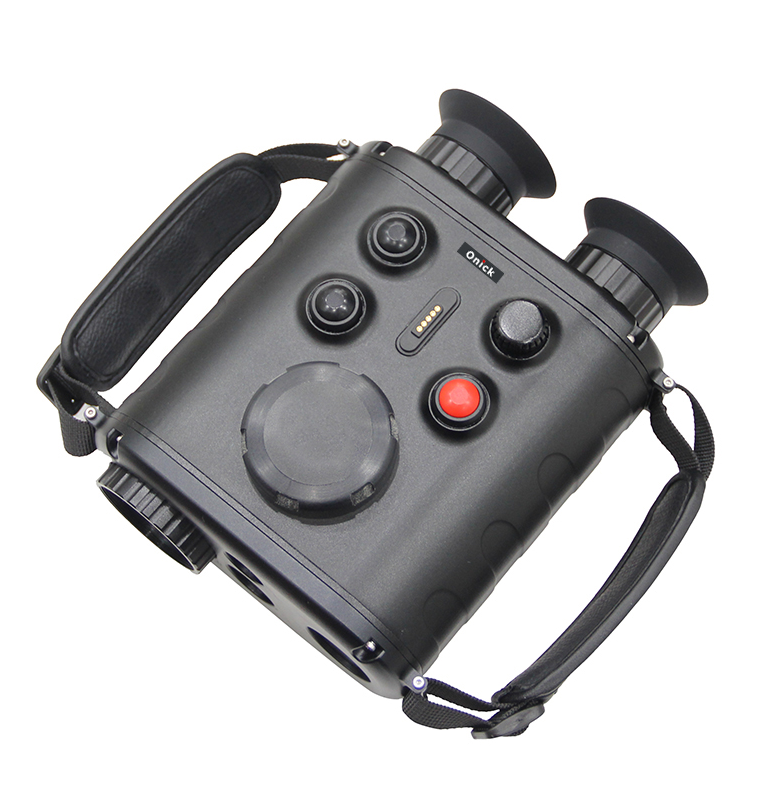

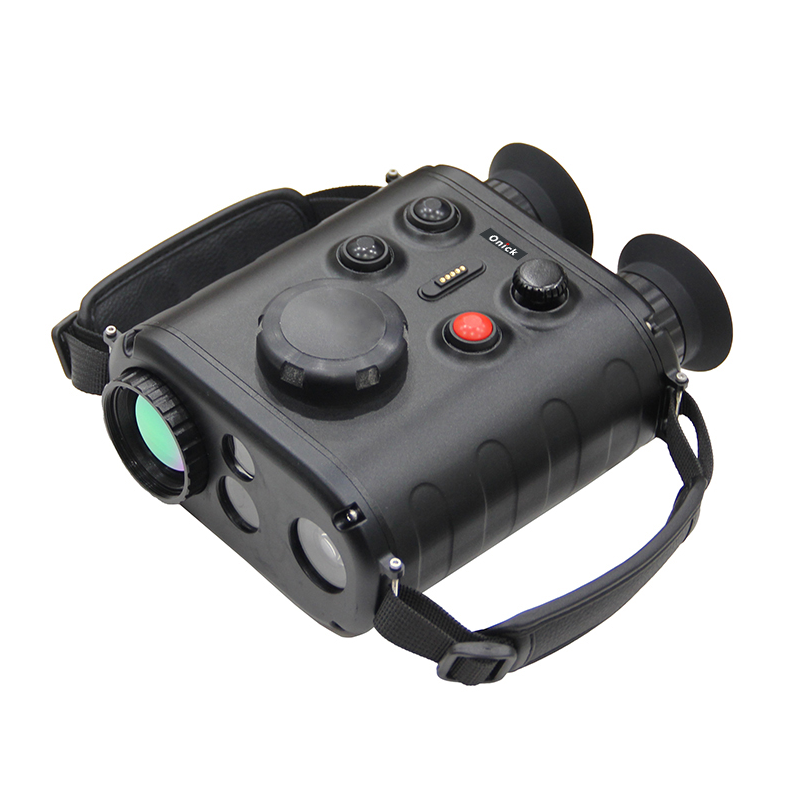

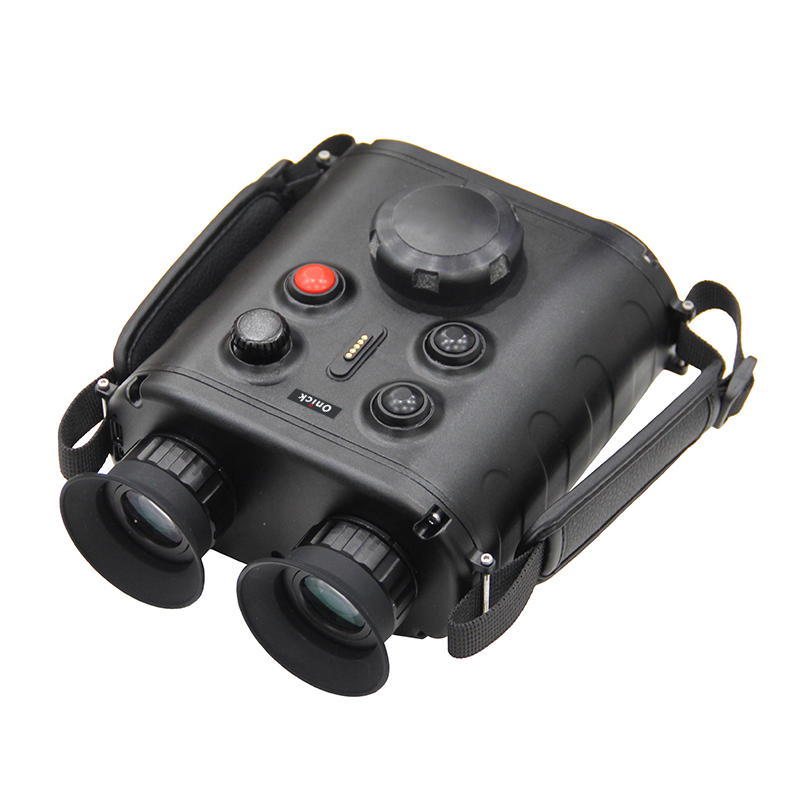

Onick RE650 handheld three-light thermal imaging observation instrument. Onick RE650 is a handheld infrared white light observation instrument equipped with a TV camera, an uncooled infrared thermal imager, a laser rangefinder, GPS, an electronic compass, etc., mainly used for day and night reconnaissance, target positioning, etc. The product has good infrared imaging effect, and is small and light, low power consumption, simple operation, light and portable appearance, and has a good grip. The product adopts high-resolution infrared sensor, with the best infrared imaging effect, internationally leading ultra-low power consumption, fast start-up, simple control, compact and stable structure.
Main functions:
1. Infrared, white light imaging, binocular observation, image and video storage, electronic zoom 1.0×~8.0× stepless zoom, step 0.1×;
2. Laser ranging, Beidou positioning, compass orientation, target positioning, trajectory calculation function;
3. Reserved expansion interface, can be connected to external temperature and humidity sensors, anemometers, etc.;
4. Fog penetration, roll angle, pitch angle, altitude, air pressure sensor, fault diagnosis function;
5. AI recognition function of human and vehicle targets;
Application field
Role in anti-terrorism, investigation, border defense, drug control night vision, border patrol, border inspection station monitoring, water search and rescue, prison monitoring, night vision patrol, epidemic prevention.
Technical parameters
Product model: Onick RE 650
Infrared thermal imager
Detector: 640×512, 12um vanadium oxide uncooled focal plane array;
Lens: 35mm, F1;
White light camera
Detector: 3840×2160, 1.5μm color CMOS;
Lens: 35mm, F1.8;
Laser rangefinder
Wavelength: 905nm;
Range: 10~3500m;
Range accuracy: ±0.2m;
Display
Display: 0.39-inch OLED, resolution ≥1024×768;
Eyepiece magnification: 15x;
Eyepiece diopter: -4D~4D;
Storage: built-in TF card, storage of ≥20,000 pictures, ≥4 hours of video;
External interface
Video output: HDMI;
Image and video export: USB;
Working time: not less than 4 hours (normal temperature);
Dimensions and weight: weight not exceeding 1.2kg;
Environmental adaptability
Working temperature: -20℃~50℃;
Dimensions: 187.5*135*78.9mm
