Long-distance laser ranging is easy to use, small and portable, and powerful. It can measure distance, accurately calculate average value, and store data. Azimuth and elevation functions are optional. It is widely used in research institutes, universities, troops, rivers, waterways, benchmarks, telecommunications, cables, geological surveys, meteorology, airports, forests and other industries.
Product features:
The distance measurement accuracy is up to 0.5 meters;
With a gating function, the minimum range channel can be set; with an average distance measurement function (AGV);
With a standard RS232 serial port, it can also be equipped with Bluetooth and PDA, and the computer can be connected to transmit data;
It can store and view measurement data, and has data sending, data retrieval, data deletion and lighting functions;
Optionally equipped with azimuth and pitch angle functions, displaying the horizontal distance and vertical distance of the target, and the pitch angle display range is ±45°; azimuth, azimuth is displayed as 360°, N000.0° is displayed in the north, and gradually increases to the east, with a maximum of N359.9°;
Application areas: power, industry, forestry, security, geological exploration, construction, outdoor hunting, camping and mountaineering, etc.
Technical parameters:

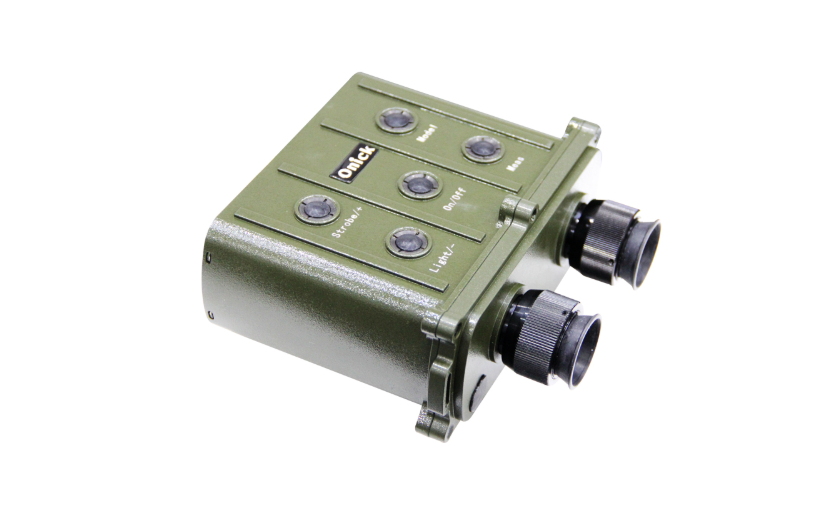

Model: 6000CI
Origin: Made in China
Date of listing: 2019.9
Patent application number: 202030826525.7
Chinese brand: Onick English brand: Onick
1. Distance measurement parameters
Distance measurement range: 30~6000m
Distance measurement error: ±0.5m
Distance selection: 20 ~ 5100 m (step length is 10m)
Accuracy: 98%
Repetition frequency: 1/6 ~ 1/3 Hz (10 ~ 20 times/min)
Compass accuracy: ±1 degree (optional function)
Inclination accuracy: ±0.1 degree (within ±25 degrees) (optional function)
⒉ Distance measurement function
Calculate the average value of measurement data
Measurement data storage (1000 data)
Measurement data transmission (output interface: RS232, 9600, 8, N, 1)
Display brightness and reticle illumination adjustment
Instrument working life statistics
Query the last ten distance measurement values
Query the serial number
Query the storage area data
⒊ Optical parameters
Receiving aperture: Φ30mm
Field of view of the sight: 6.5°
Magnification of the sight: 7X
⒋ Laser parameters
Wavelength: 1.064μm
Light source: Nd:YAG
Output energy: ≥5 mj
Working life: ≥20,000 times
⒌ Working temperature: -20℃ ~ +50℃
⒍ Environmental adaptability: dustproof, waterproof, shockproof
⒎ Mechanical parameters:
Dimensions: 151mm*154mm*74mm
Weight: 1 Kg
⒏ Power supply
① This instrument uses two 3.7V, 3400mAh lithium batteries 18650. At room temperature, two fully charged batteries can measure distances for more than 3,000 times.
Note: Each time the battery is reinstalled, it must be plugged in to the power supply for charging and activation before it can be used normally! !
② For power charging, insert the output plug of the power supply into the instrument socket, and then insert the power plug into the AC 100~240V power supply.
The power supply usually has the following two states:
State 1: Insert the charger in the off state, the instrument is turned on, the LOGO is displayed, and then only the flashing battery symbol is displayed. When the battery is full, the battery symbol stops flashing. After unplugging the charger, the instrument automatically shuts down.
State 2: Insert the charger when the instrument is turned on, the battery symbol flashes, the battery is full, and the battery symbol stops flashing, indicating that it is full. After unplugging the charger, the operation of the instrument is not affected.
9. Installation and use
It can be fixed on the camera stand through the 1/4 screw hole of the connecting plate at the bottom of the instrument, or connected to various theodolites through the dovetail groove of the connecting plate through a special adapter mechanism, and remote control ranging operation can be performed through an external trigger cable.
Packing list: instrument box, rangefinder, 12V2A power supply, 18650 battery*2, external trigger cable, data cable, manual, warranty card, lens cleaning cloth
