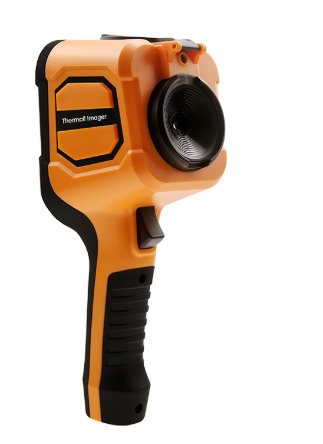

This handheld infrared thermal imager offers automatic or manual control of the color scale temperature range, two measurement units (°C and °F), support for hottest point measurement, two movable measurement points, and four selectable color scales. It supports JPG image/photo formats, built-in storage (2-8GB), CMOS visible light image and storage, and a built-in emissivity chart for common materials.
II. Product Features:
High-definition display, long-range measurement, and accurate temperature measurement from -20°C to 450°C.
Sensitive infrared sensor, fast temperature compensation imaging, and high-definition display.

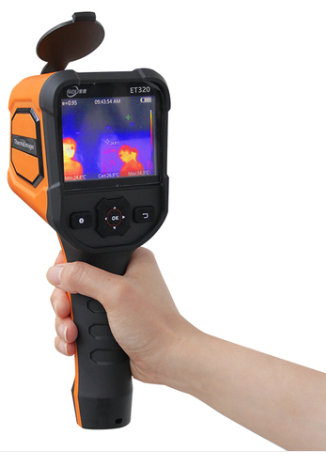

Supports multiple image display modes: single infrared thermal imaging, edge-fused visible light imaging, and overlay fusion.
Automatically tracks hot and cold spots, instantly identifying the lowest and highest temperatures within the measurement range, providing flexible temperature measurement.
Supports temperature alarms.
Applications:
Widely used in electronic device inspection, machinery maintenance, building defect research, distribution box inspection, floor heating equipment inspection, body temperature monitoring, healthcare, firefighting, archaeology, transportation, agriculture, geology, energy, smelting, and electronics manufacturing. It is an ideal choice for electricians and maintenance technicians, allowing them to quickly locate problematic areas.
III. Product Specifications:
Infrared Resolution: 320*240
Infrared Spectral Band: 8µm to 14µm
Image Frame Rate: 9Hz
Power-On Time: 10 seconds
Temperature Measurement Range: -20°C to 450°C
Spatial Resolution: 2.9mrad
Menu Interface: Android-based
Wi-Fi: Supported
Temperature Alarm: Configurable high and low temperature beeping alarms
Color Palette: Rainbow/Iron Red/Cold/White Hot/Black Hot; Professional Algorithm for Vivid and Bright Images
Drop Resistance: 2m (6.5ft) drop resistance
Focus: Fixed Focus distance/minimum focus distance: 0.5m
Image fusion modes: Fusion (0%, 25%, 50%, 75%, 100%)
Display type: 3.5-inch, 320*240 TFT/640*480 TFT
Field of view: 27°*35°
Thermal sensitivity: 0.07°C
Visible light pixels: 300,000
Image format: Photo JPG
Storage: Built-in 6GB
Charging method: Charger
Power supply type: Lithium battery (replaceable)
Battery life: 4-6 hours
Vibration and shock: 2G, IEC68-2-6
