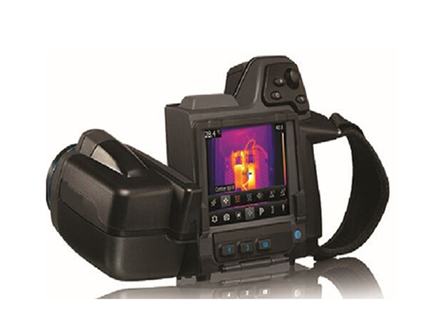

Product Features:
1. 640x480 high-pixel detector with 5 million visible light pixels and extensive temperature measurement capabilities
2. Supports multiple temperature measurement points and measurement zones; temperature measurement range extends from -40°C to 650°C
3. Multiple imaging modes, including Bluetooth, Wi-Fi, and 4G transmission; GPS positioning; and PC remote display and viewing
4. 5.5" OLED touchscreen display + viewfinder OLED display
Product Parameters:
Detector
Detector: 640x480
Operating wavelength: 8-14µm
Frame rate: 50Hz
NETD: <40mk
Field of view: 24.5° × 18.5°
Focus: Autofocus, motorized focus Focus and manual focus modes.
Measurement and Analysis
Temperature measurement and analysis functions: 25 movable measurement points, 25 measurement zones (square or circular), and 25 adjustable movable lines.
Temperature measurement methods: Zone settings for maximum and minimum temperatures, and isotherms, with audible and color alarms, and automatic location of the highest and lowest temperature points.
Continuous stable operation time: Over 4 hours of continuous operation.
Correction settings: Emissivity, reflected temperature, humidity, ambient temperature, test distance, and transmittance.
Atmospheric transmission correction: Temperature correction can be set based on measurement distance, atmospheric temperature, and relative humidity.
Full-screen emissivity correction: 0.01 to 1.0, with a built-in emissivity table for common materials.
On-site Zoned emissivity settings: Supports setting individual emissivity for each measurement point, measurement area, and measurement line, improving measurement accuracy.
Temperature measurement range: -40°C to +650°C, in two settings, customizable and expandable.
Temperature measurement accuracy: ±2°C or ±2%.
Super-resolution: Yes.
Laser ranging: Yes, with on-screen display.
Imaging performance: Visible light camera: 5 megapixels, standard LED fill light.
Image modes: Infrared thermal imaging, visible light, picture-in-picture, and fusion imaging.
Display: 5.5" OLED touchscreen display + viewfinder OLED display (800x600).
Digital zoom: 1x to 16x continuous zoom.
Color palette: 20. Selectable color palette modes
Ergonomics: 180° rotatable hinged lens
Digital image enhancement: Yes
Image overlay settings: Supported, with settings for displaying maximum, minimum, average, full-screen emissivity, and reflected temperature information on the image
Temperature marker display settings: Supported, with individual settings for each temperature marker, such as displaying emissivity and other information
Manual image adjustment: Yes
Automatic image adjustment: Yes
Laser pointer: Yes, Class 2
Laser type: Semiconductor AlGalnP diode laser, 1mW, 635nm (red)
Sound support: Chinese, English, and customizable multiple languages
Storage and transfer
Image browsing: Thumbnail view navigation and view selection Storage Media: Built-in 16GB flash memory + 512GB high-speed SD card
SD card: Yes
Infrared image file format: Standard JPEG, including measurement data
Visible light image file format: Standard JPEG, automatically associated with the infrared image
Text/Voice Annotation: Voice recording of at least 60 seconds, stored with the image; preset text or direct text input is supported
Audio: Yes
Data Communication Interfaces: USB Type-C, HDMI, SD card, Bluetooth, Wi-Fi, 4G
Video, Connector Type: HDMI
Wireless Connection: Yes, Wi-Fi, Bluetooth
Wi-Fi Properties: Standard: 802.11b/g, Frequency Range: 2412-2462MHz, Maximum Output Power: 15dBm
Bluetooth: Yes
4G Transmission: Yes (Power Grid Encryption)
GPS Positioning: Automatically adds GPS location information to each still image (when a GPS signal is available)
Remote Display Viewing: Yes, view the thermal imager's video on a PC or TV monitor Streams video and connects to a monitor via HDMI.
USB Functions: Transmits fully radiometric thermal image stream to a PC; reads data from the camera's internal flash memory; reads data from an SD card.
USB: USB 3.0
Antenna: Built-in
Power and Environment
Battery Type: 3 rechargeable lithium batteries
Battery Operating Time: >4 hours of continuous use at an ambient temperature of 25°C
Battery Charge Time: Fully charged in 2.5 hours
Battery Charging System: DCP charger
Operating Temperature: -20°C to 50°C
Storage Temperature: -20°C to 70°C
Relative Humidity: <90% RH
Physical Parameters
Protection: IP54 IEC529
Weight: 1500g
Dimensions: 214mm x 140mm x 89mm
Electromagnetic Compatibility (EMC): IEC 6126-1, GB/T 17626.2-2006, GB/T17626.8-2006
Tripod Mount: UNC 1/4"-20 port allows direct connection to a tripod
Intelligent Features
Data Standardization: Yes, with a built-in structured data engine
Automatic Thermal Image Naming: Yes, based on device records or by scanning a QR code
Scan QR Code Quick Test: Scan a device's QR code or barcode to quickly jump to the corresponding device under test and automatically associate test data
Test Task Download: Supports one-click downloading of test tasks via SD card, USB cable, Wi-Fi, 4G module, and Bluetooth Upload inspection tasks: Supports one-click upload of inspection tasks via SD card, USB cable, Wi-Fi, 4G module, and Bluetooth.
Inspection task display: The device intuitively displays the number of inspection tasks, device level, equipment ledger, and other information.
Task progress indicator: The device intuitively displays the total number of inspection tasks and the number of completed tasks.
Built-in diagnostic standards: Yes, the device can be embedded with user-defined equipment management standards, industry diagnostic standards, or industry expert experience.
On-site intelligent diagnosis: Yes, on-site inspections automatically use built-in diagnostic standards for real-time diagnosis, and the diagnostic conclusion is automatically saved in the thermal image.
