Products Description
Product Introduction:

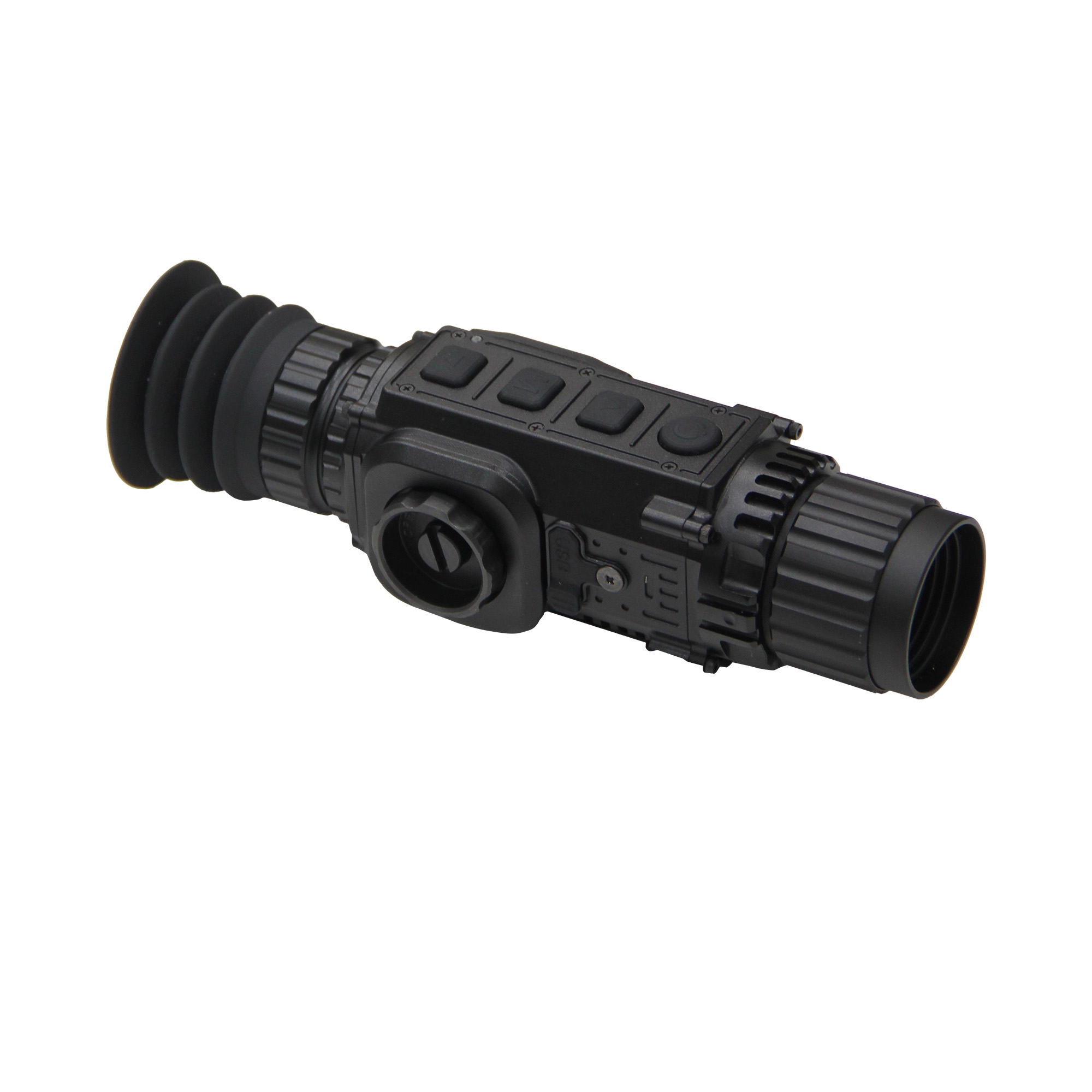

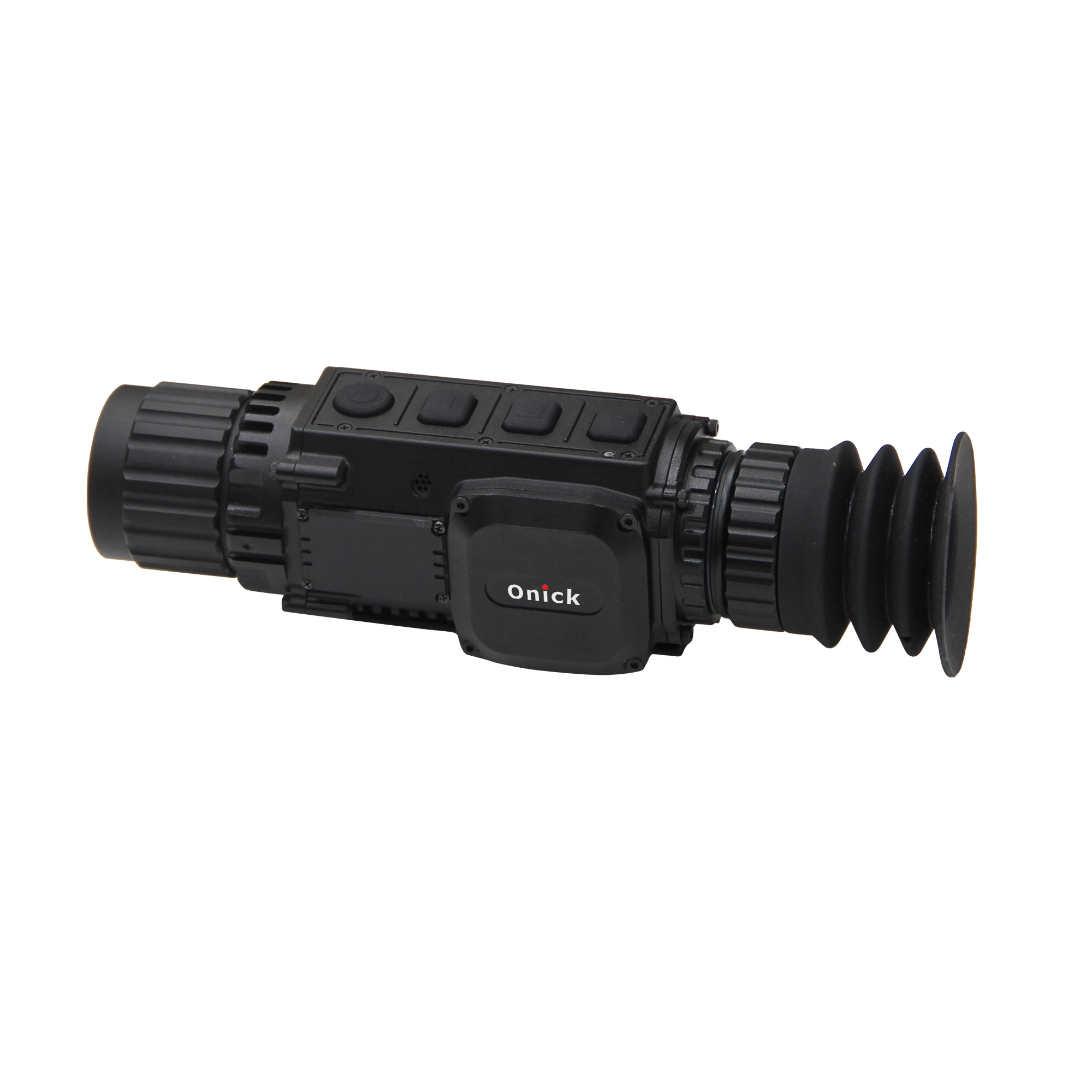

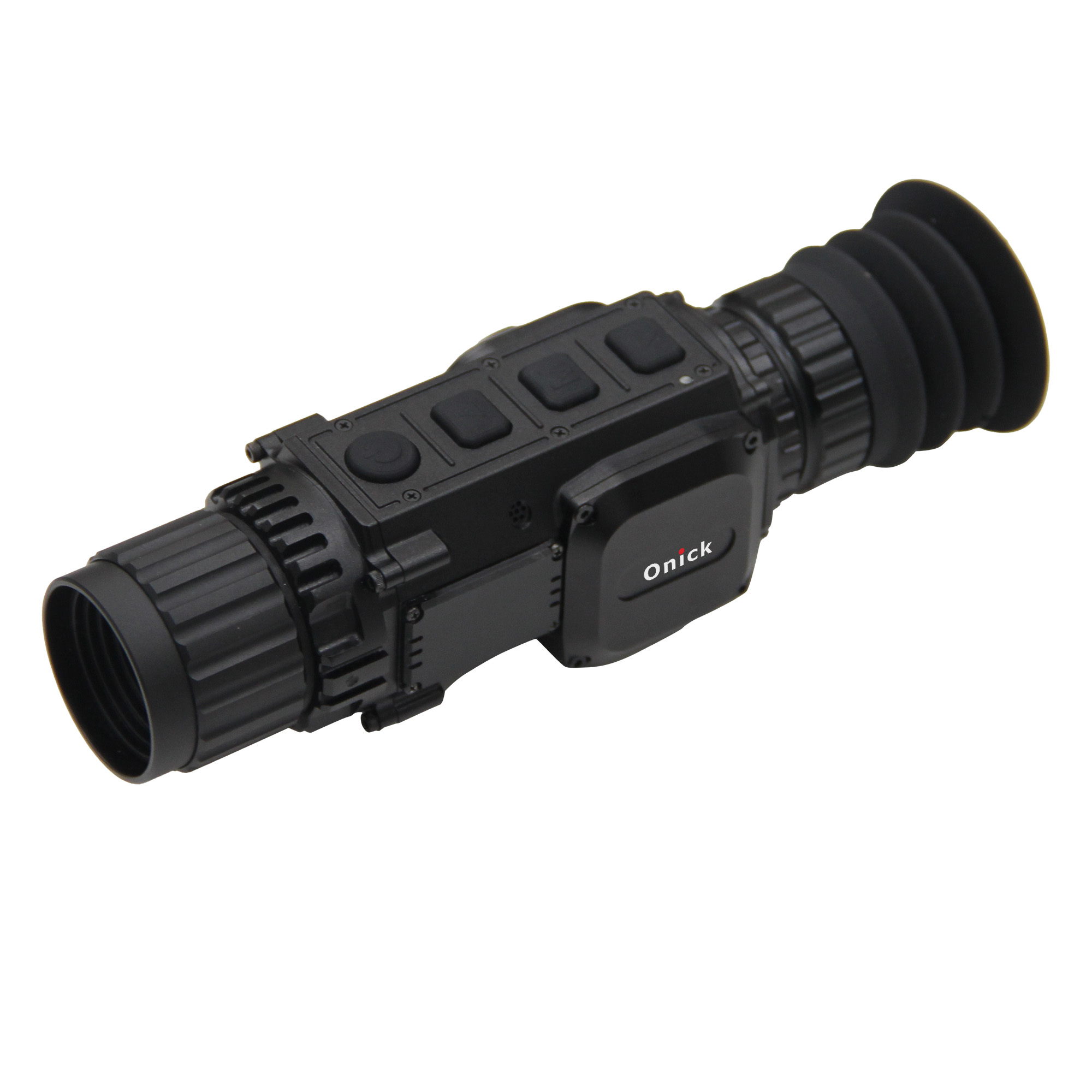

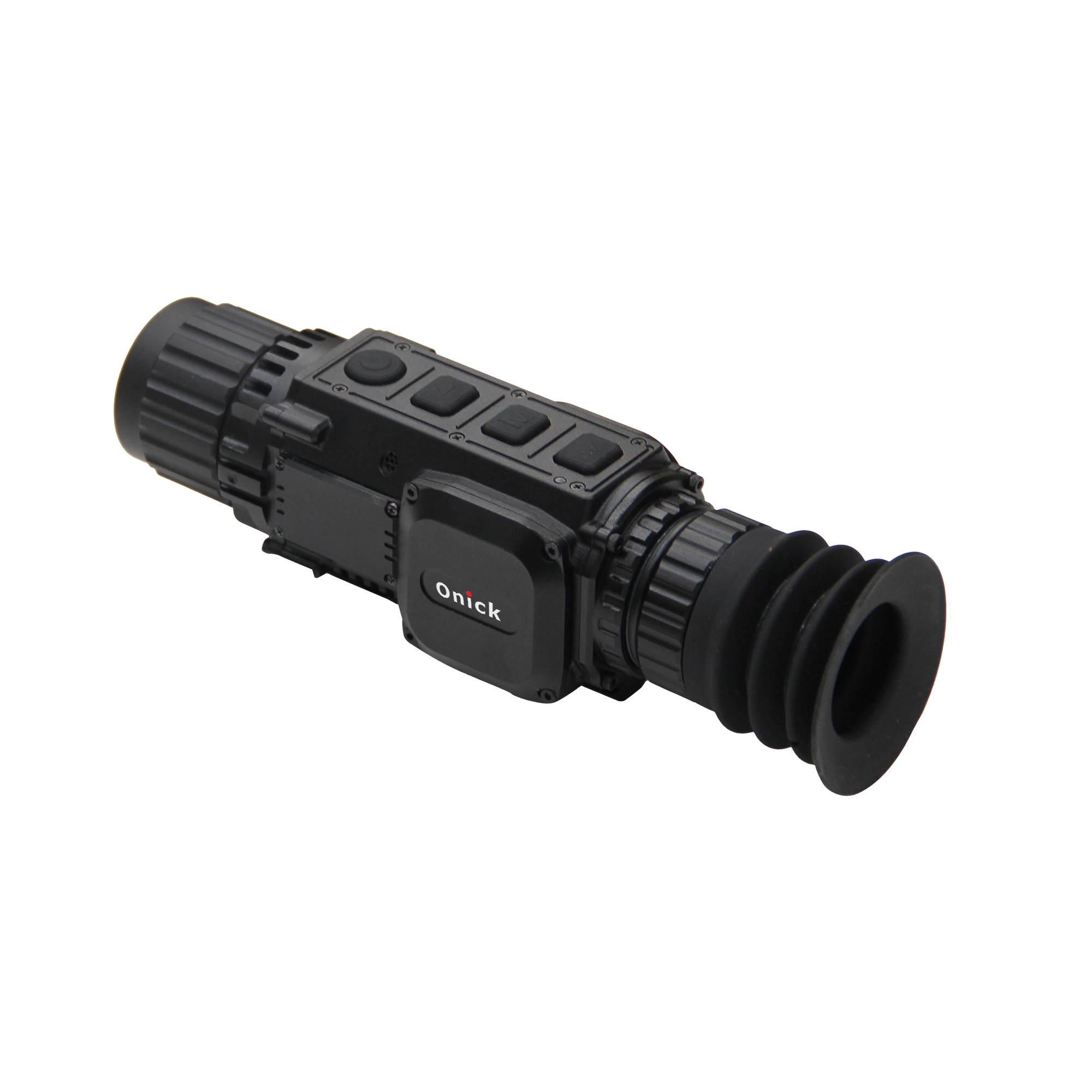

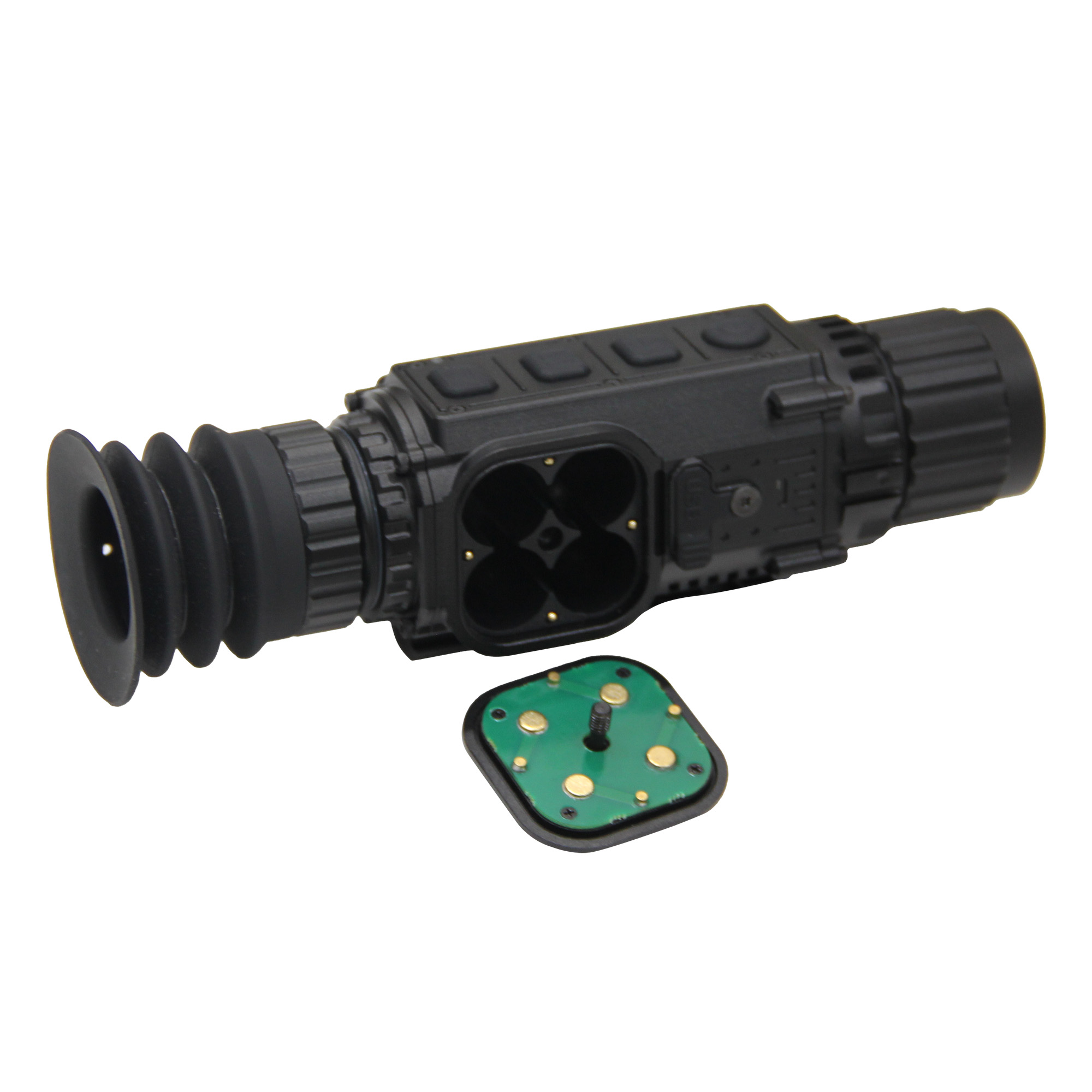

Onick RM-20 multi-function thermal imager is a high-performance infrared observation camera with clear images and compact design, designed for night vision and aiming; the rugged design not only provides excellent flexibility and impact resistance, but also is very easy to operate and install, making it an ideal choice for night hunting and outdoor applications.
Features
●NETD<40mk
●High frame rate: 50HZ
●Aluminum alloy housing
●Optional laser rangefinder
●Built-in 64GB storage, supports photo and video recording
●Built-in Wi-Fi module
●Intelligent power management
●Application support
●Built-in digital compass and gravity sensor
●Support PIP and pixel calibration functions
Technical parameter
| Model Number | RM-20 |
| Detector type | VOx uncooled microcalorimeter |
| Resolution | 256 x192 |
| Band | 8 μm ~ 14 μm |
| Pixel size | 12μm |
| NETD | ≤40k @ 25°C, @ F/1.0 |
| Frame rate | 50HZ |
| Lens focal length | 19mm |
| Field of view | 9.2°x6.9° |
| Focus | manual |
| Display | color OLED, 0.39 inches, 1024x768 |
| Detection distance | 800m (upright adult), 1800m (medium-sized truck) |
| Recognition distance | 400m (upright adult), 900m (medium-sized truck) |
| Diopter | -8 ~ + 3 |
| Exit pupil | 38mm |
| Image function | pseudo color/digital zoom (1x/2x/3x/4x)/ PIP |
| WIFI | Image transmission (Android only) |
| Power supply | CR123A rechargeable lithium battery, 4 batteries |
| Battery life | ≥4h |
| Memory | 64G (up to 512GB) |
| Installation interface | Picatinny installation (three-stage adjustable) |
| Weight | 650g (including battery) |
| Language | Simplified Chinese/English |
| Dimensions | 260mm x 60mm x 80mm (with clip) |
| Interface | Type-C (power, Cvbs output, media management) |
| Shock | 1000g |
| Operating temperature | -20℃~ +55℃ |
| Storage temperature | -40℃~ +70℃ |
| Optional function (*) | Laser ranging (up to 1.5 km) |
| List | host, 1634 battery X8, battery charger, data cable, video cable, Picatinny bracket (with assembly kit), portable bag, lens cleaning cloth, manual, certificate of conformity |
