ranging telescope

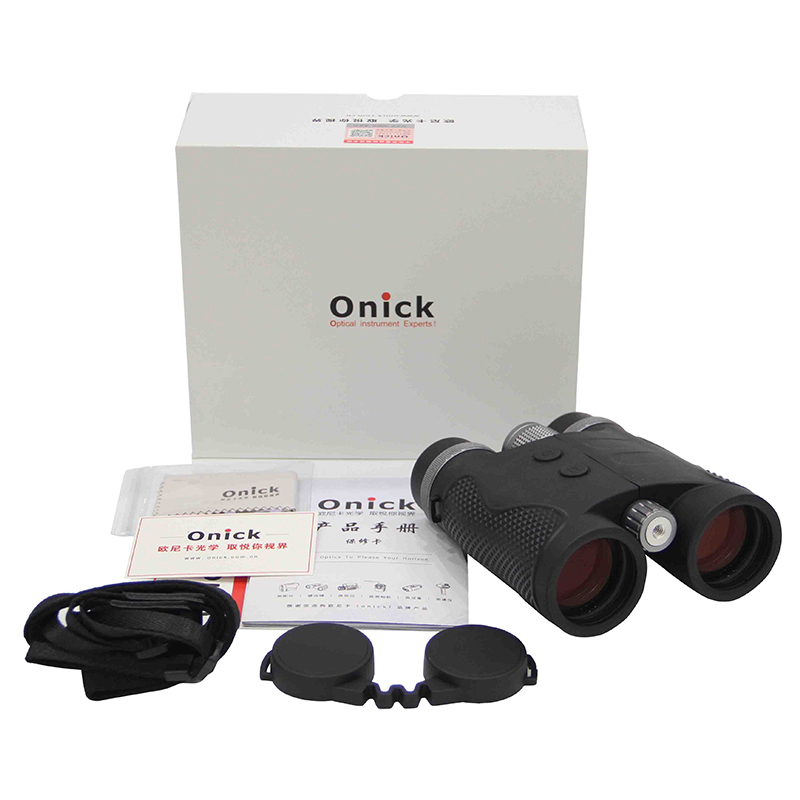

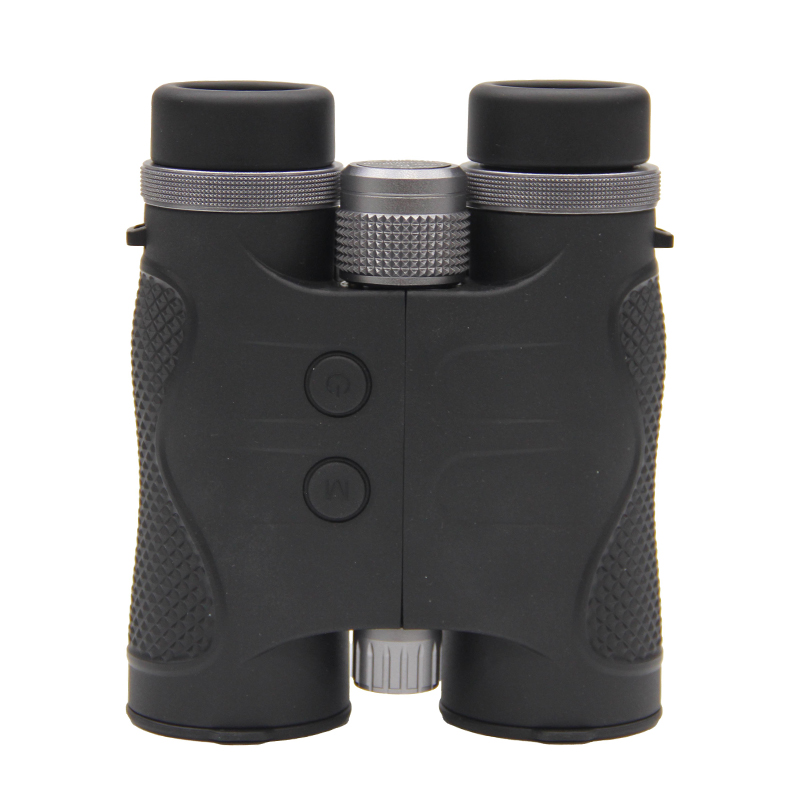

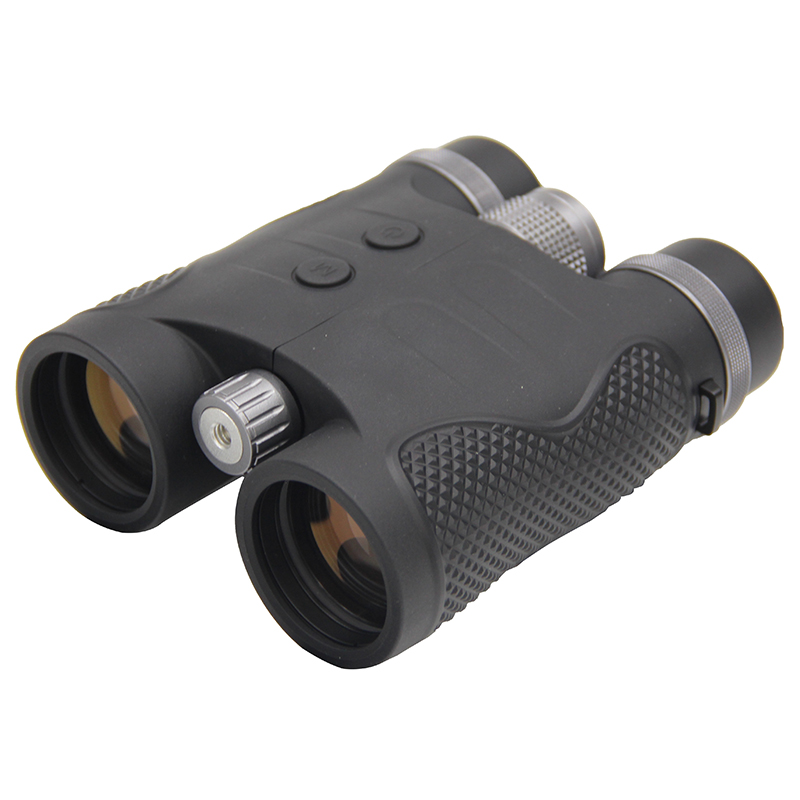

Black Hawk 10X42ED Rangefinder Telescope

With a range of up to 2400 meters, they combine rangefinder, anglefinder, and telescope functions. The magnesium alloy body is strong and lightweight. IP67 waterproof, nitrogen-sealed, and coated with a waterproof film on the exterior glass protect against dust, water, and mildew. This is a professional industrial or outdoor device that integrates high-performance optics and precision laser ranging capabilities.
Send Inquiry
Description
Parameter
Products Description

Brilliant Vision, Clear at a Glance

The Onick Black Hawk binoculars offer all-weather brightness and clarity. Equipped with ED extra-low dispersion glass, premium fully coated optics, and highly coated BAK4 prisms, they gather more light and produce brilliant color fidelity. Waterproof, shock-resistant, and rubberized for protection, they're ready for any eventuality. Even in the harshest conditions, with the Onick Black Hawk binoculars, your view will be crystal clear!

With a range of up to 2400 meters, they combine rangefinder, anglefinder, and telescope functions. The magnesium alloy body is strong and lightweight. IP67 waterproof, nitrogen-sealed, and coated with a waterproof film on the exterior glass protect against dust, water, and mildew. This is a professional industrial or outdoor device that integrates high-performance optics and precision laser ranging capabilities.


Product Features:

1. Combines distance measurement, angle measurement, and telescope functions.

2. 2400m measurement range with an error of only ±0.5m + Dx 0.1%.

3. Automatic power-off system, rugged design, and comfortable operation.

4. Low laser power, eye-safe.


Applications:

Outdoor travel, wilderness exploration, sporting events, concerts, power safety inspections, forestry surveys, security and police use, military patrols, industrial inspections, maritime observation, archaeological research, railway route selection, and land resources surveys.


Technical parameter
Magnification 10x
Objective Aperture 42mm
Lens Type ED Lens
Prism Material BAK4 Prism
Body Material Magnesium Alloy
Coating FMC Multi-Layer Broadband Coating
Eyepiece Aperture 21mm
Eyepiece/Objective 5E3G/4E3G
Field of View 6.1°
Kilometer Field of View 97m/1000m
Minimum Focusing Distance 3m
Exit Pupil Relief 15.1mm
Exit Pupil Diameter 4.25mm
Relative Brightness18.06
Twilight Index20.49
Resolution 4.2"
Interpupillary Distance Adjustment Range 56-76mm
Prism Type Roof
Eyepiece Diopter Adjustment Range ±5D
Focusing Internal Focus
Eye Mask Twist-Up
Laser Wavelength 905nm
Laser Transmitter Power1
Laser Class Class 1
Distance Display High-Transmittance LCD
Distance Range  0-2400m
Distance Accuracy ±0.5m + 0.1%
Angle Range ±90°
Units M (meters), Y (yards)
Functions Distance, Angle, Continuous Measurement
Waterproof and Fogproof IP67
Battery Type CR2
Tripod Mount 1/4" Universal Mount
Operating Temperature -20°C to +60°C
Protection Rating IP67, Nitrogen-Filled Waterproof
Dimensions 146mm × 111mm × 51mm
Weight 810g
