Multi-functional rangefinder with Beidou color touch screen

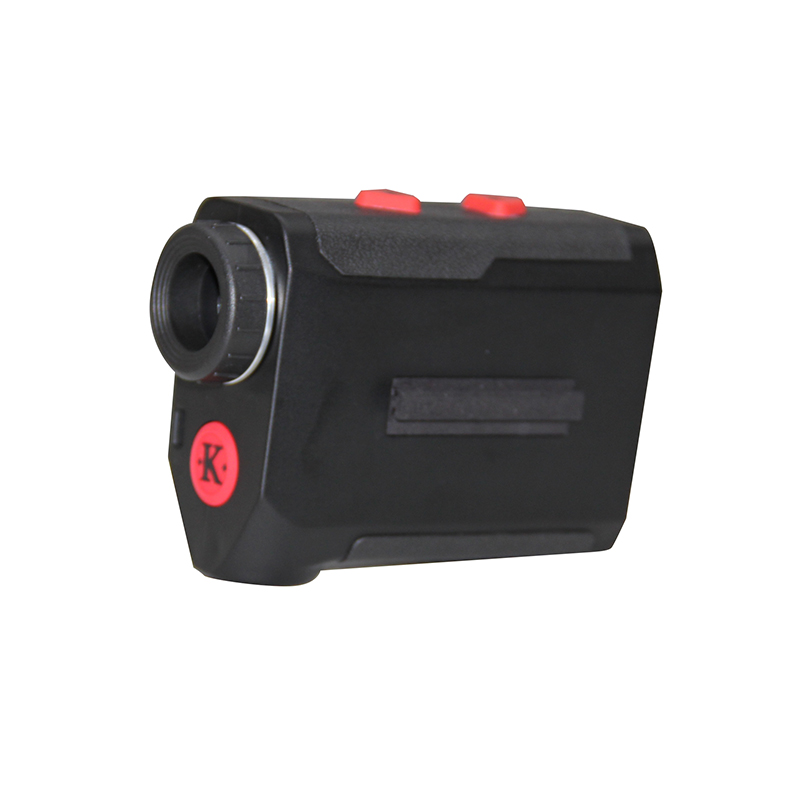

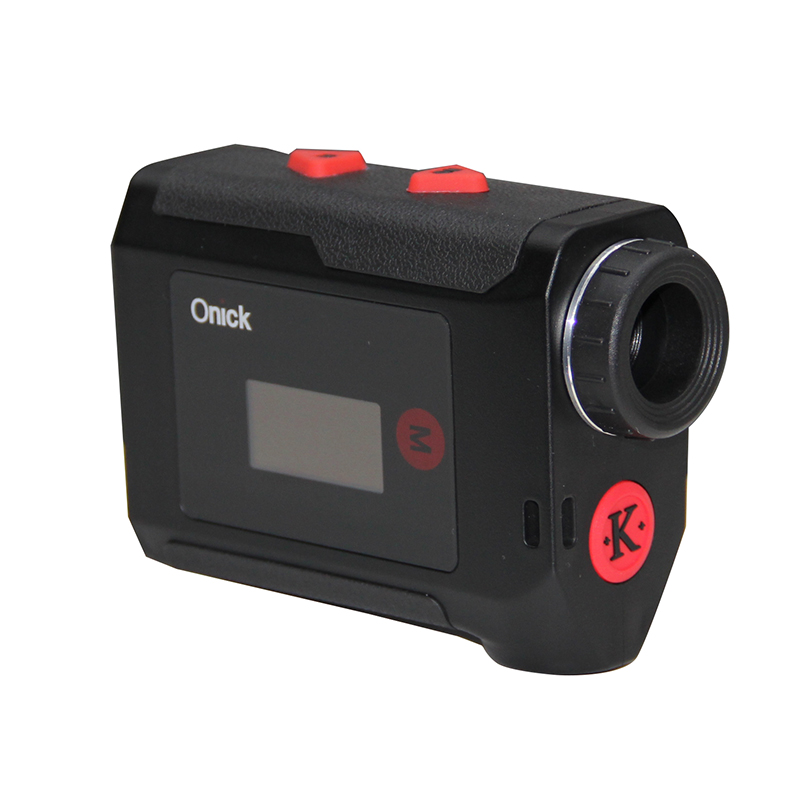

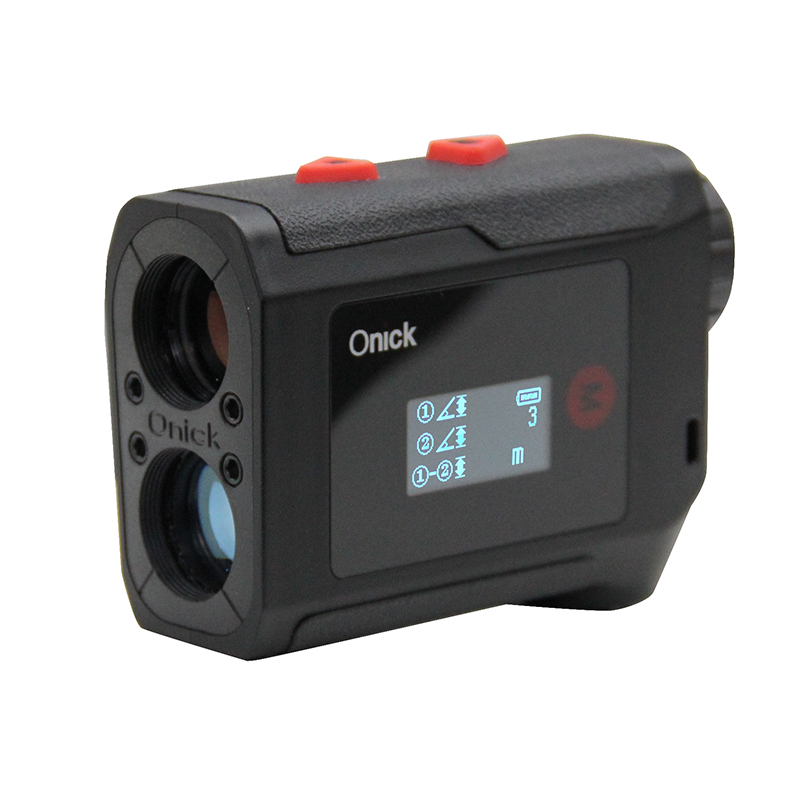

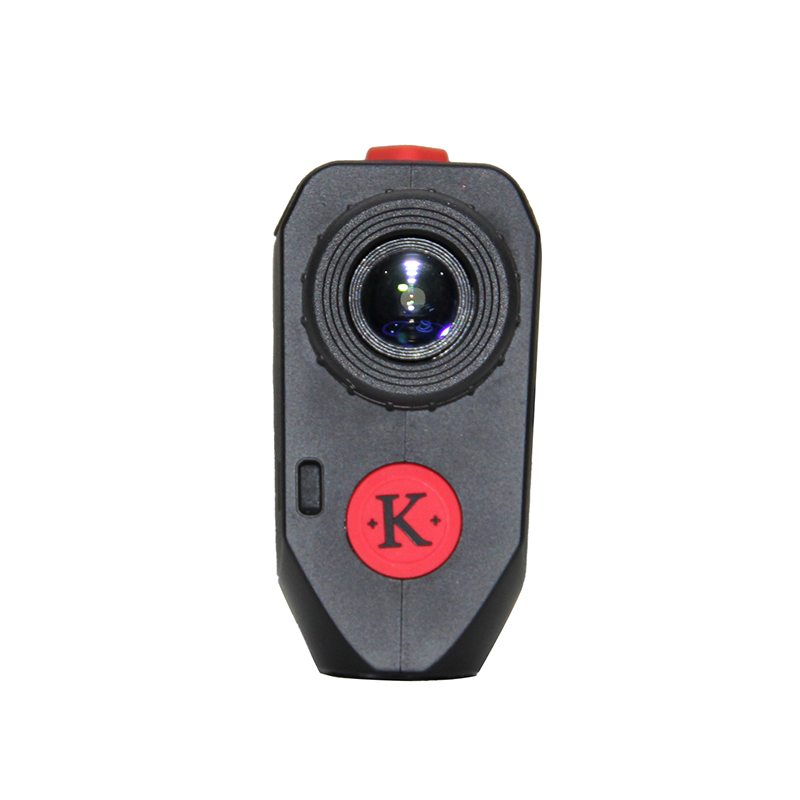

3000AS Multifunctional Rangefinder with Beidou Color Touchscreen (with Explosion-proof Certificate)

The Onick 3000AS laser rangefinder integrates the functions of a telescope, laser rangefinder, and rangefinders for measuring altitude, angle, speed, and even golf. It features BeiDou positioning and
Send Inquiry
Description
Parameter
Products Description

The Onick 3000AS laser rangefinder integrates the functions of a telescope, laser rangefinder, and rangefinders for measuring altitude, angle, speed, and even golf. It features BeiDou positioning and satellite time display. While clearly observing objects, the 3000AS laser rangefinder can measure the distance, height, angle, and speed of objects within a certain range. The instrument boasts dual displays—one inside the eyepiece and one on the external OLED screen—and offers advantages such as high ranging accuracy, short measurement time, intuitive distance display, low power consumption, and automatic power-off. New additions include a rectangular area measurement mode, a volume measurement mode, and a back-mounted infrared rail, allowing for nighttime ranging with a flashlight, thus broadening its application range.


Product Features:

1. Integrates distance measurement, height measurement, angle measurement, area measurement, and volume measurement;

2. Features dual data display, an external color LCD touchscreen, and multiple operation methods;

3. 0.2-meter accuracy, high distance measurement precision, short measurement time, and intuitive distance display;

4. Nine measurement modes: distance measurement, height measurement, angle measurement, horizontal distance measurement, golf mode, speed measurement, area measurement, volume measurement, BeiDou positioning, and satellite time;

5. Back-mounted infrared rail allows for nighttime distance measurement with a flashlight, broadening its application range;

6. Clear blue screen display. Suitable for use in low-light environments;

7. Sensitive measurement, clear target, simple and stable operation;


Applications:
Power line surveying and design, power safety inspection, forestry survey, security and police work, geological exploration, hunting, railway construction surveying, installation surveying, high-rise building monitoring, high-speed passenger line track construction, water conservancy and hydropower surveying, river surveying, geology, police work, fire protection, navigation, railway, agriculture, forestry, golf courses, outdoor recreation, counter-terrorism, oil pipelines, archaeological research, mine surveying, railway alignment, land and resources surveys, etc.


Technical parameter
Maximum distance measurement 3km
Distance measurement accuracy ±0.2m
Resolution 0.1m
Angle measurement function Yes
Angle measurement range ±90°
Angle measurement accuracy ±1°
Single point altitude measurement Yes
Speed measurement function Yes
Speed measurement range 0-300KM/H
Speed measurement accuracy ±3KM/H
Two point altitude measurement Yes
Golf mode Yes
Horizontal measurement Yes
Area measurement Yes
Volume measurement Yes
BeiDou positioning Yes, displays latitude and longitude
Time display Real-time satellite Beijing time displayed on external screen
Bluetooth transmission Yes
Scanning function Yes
Laser type Class I eye-safe laser
Data storage 50 sets
Low voltage warning Yes
Magnification 8X
Objective lens diameter 24mm
Eyepiece aperture 17mm
Exit pupil diameter 3.9mm
Field of view 7°
Diopter adjustment range ±4 diopters
Product weight Approx. 200g
Display Built-in LCD, external OLED screen
Battery type CR2/3.7V rechargeable battery
Operating temperature -10℃ to 50℃
Focusing method Manual eyepiece focusing
External rail A fixed rail is located on the side of the main unit, with a quick-release mounting bracket. A flashlight can be inserted into the mounting bracket.
Tripod Interface Standard
Dimensions 110x50x85mm
Measurement Modes Distance and Angle Measurement, Single-Point Altitude Measurement, Two-Point Altitude Measurement, Horizontal Distance Measurement, Golf Mode, Speed Measurement, Area Measurement, Volume Measurement, BeiDou Positioning, Satellite Time
Battery Type CR2-3V Lithium Battery
Package List Rangefinder, Carrying Case, CR2-3V Battery *1, Lanyard, Cleaning Cloth, Instruction Manual, Warranty Card, Color Box
