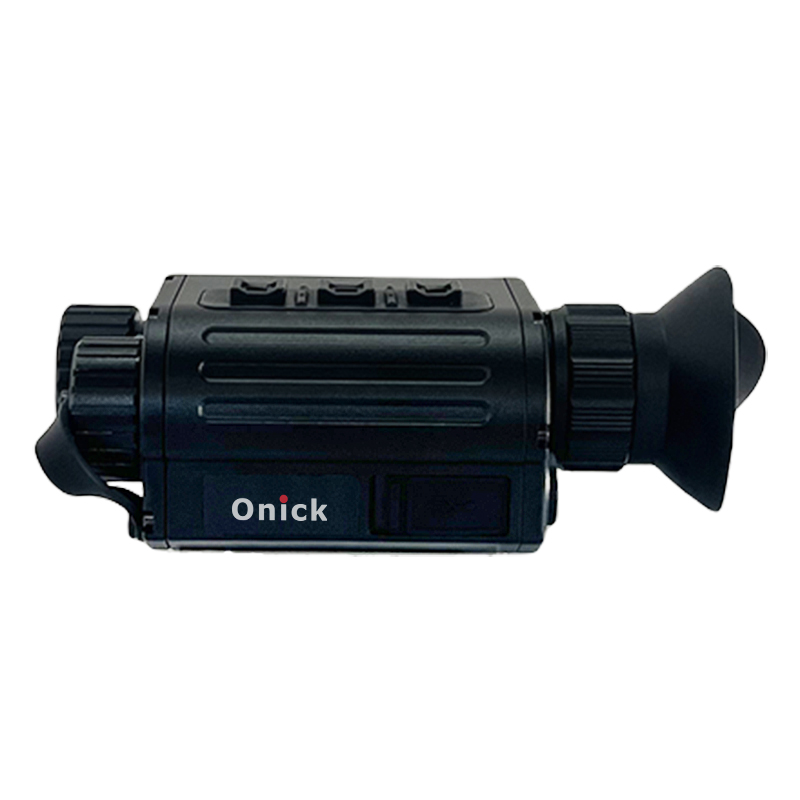

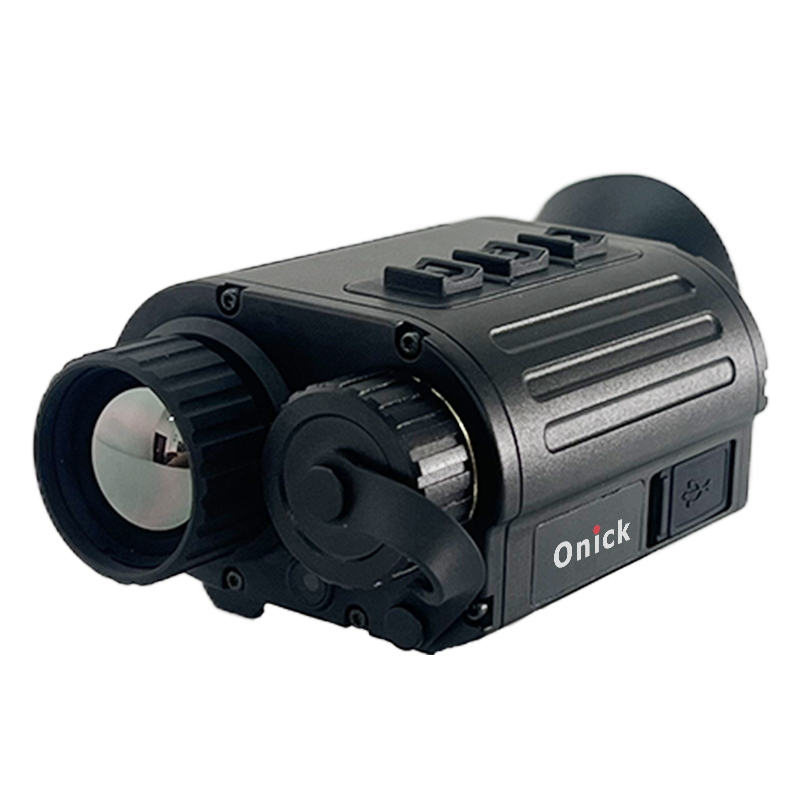

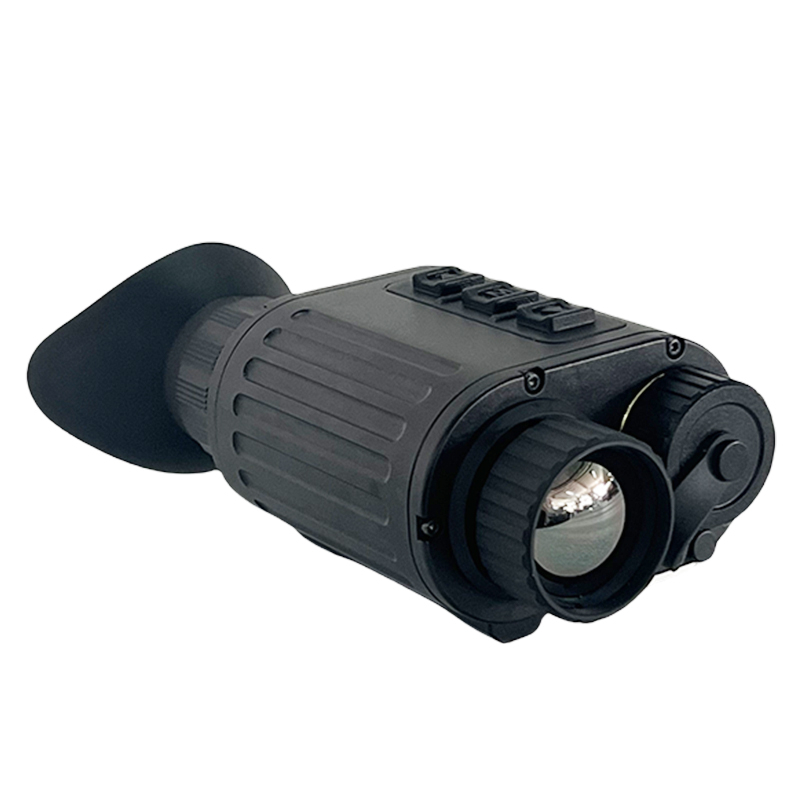

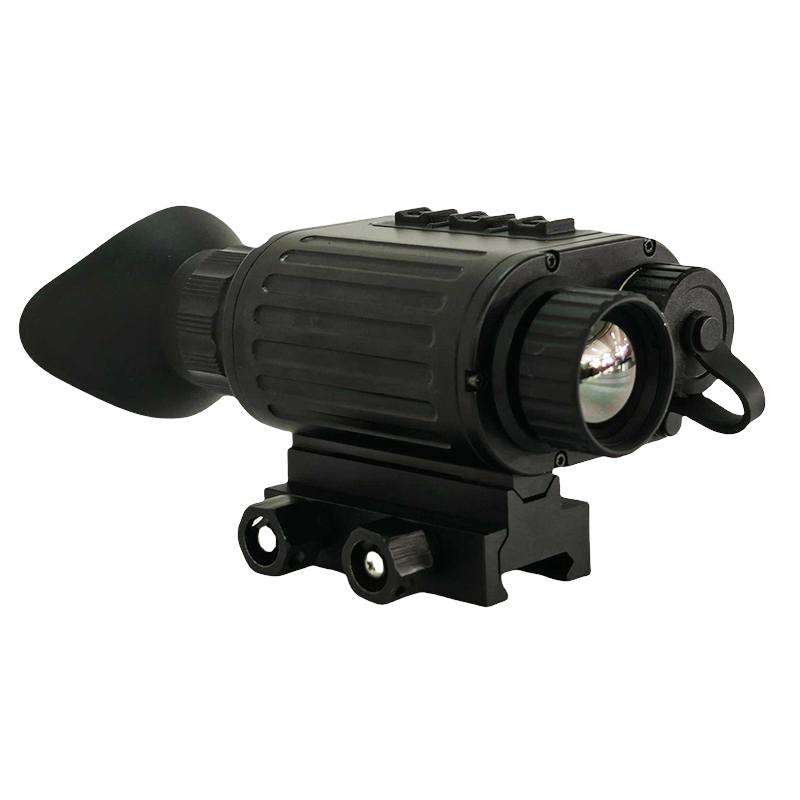

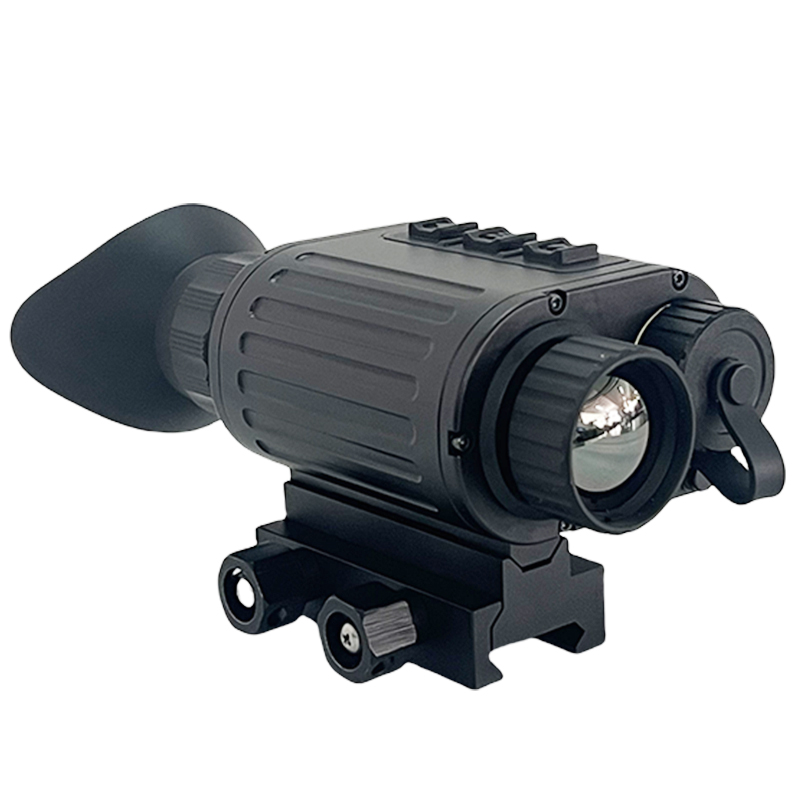

Multifunctional Thermal Monocular

Four-in-one Multifunctional Thermal Monocular

The Onick 4IN1 series multi-functional thermal imaging monocular features a 640*512 high-resolution detector, equipped with the latest 12μm vanadium oxide detector, IP67 protection, and military-grade quality. The 4IN1 series supports GPS positioning, electronic compass, hotspot tracking, crosshair, picture-in-picture, pseudo-color switching, and Wi-Fi image transmission. Intelligent image algorithms enhance image quality, detail, outline clarity, and image sharpness.
Send Inquiry
Description
Parameter
Products Description

The Onick 4IN1 series multi-functional thermal imaging monocular features a 640*512 high-resolution detector, equipped with the latest 12μm vanadium oxide detector, IP67 protection, and military-grade quality. The 4IN1 series supports GPS positioning, electronic compass, hotspot tracking, crosshair, picture-in-picture, pseudo-color switching, and Wi-Fi image transmission. Intelligent image algorithms enhance image quality, detail, outline clarity, and image sharpness. It supports seven new observation modes: city, mountains, rivers, and forests. It supports 1200-meter laser ranging and is widely applicable to search and rescue, police enforcement, outdoor observation, adventure travel, and other scenarios.


Product Features:

1. Portability: Compact size, easy to carry, and highly concealable.

2. High-definition display: The eyepiece has a high-definition 640x512 resolution and can operate normally at -45°C.

3. Strong adaptability: Capable of monitoring in all weather and environments.

4. Supports Wi-Fi image transmission, allowing real-time browsing, recording, photo taking, playback, and control via a mobile app.

5. Equipped with a laser rangefinder module, enabling real-time accurate distance measurement up to 1000 meters.

6. New UI design language, featuring hotspot tracking, picture-in-picture image display, crosshair cursor, and multiple color markers.

7. High structural strength: The exterior is constructed primarily of rigid aluminum, ensuring excellent workability and reliability, and resulting in a superior appearance after processing.

8. Supports multiple observation modes: city, mountains, rivers, and forests, adaptable to all terrains.

9. IP66 protection rating.


Applications:
Suitable for special police, law enforcement, drug enforcement, armed police counter-control, border patrol, coastal patrol, individual night reconnaissance, hunting, hotspot tracking, and other applications.


Technical parameter

Model


4IN1-625

4IN1-319



Pixel Size


12μm



Resolution


640x512

384x288



NETD


≤20mk

≤20mk



Frame Rate


50Hz



Display (OLED)


1024x768



Objective Lens Focal Length


25mm F = 1.0

19mm F = 1.0



Field of View


17.5°x14°

13.8°x10.4 °



Diopter Adjustment


- 4~+4



Focusing Distance


5m~



Exit Pupil Distance


20mm



Color Modes


7 types



Electronic Zoom


1 - 8x



Electronic Compass


Displays azimuth, pitch, and roll



WI FI


Supported



Video/Photo


Supported



Laser pointer


Supported



Motion Sensor


Supported



Battery


1x18650 (3.7V)



Maximum off)

Battery Life (WI FI

>6hrs



Retic le Styles


7 styles



Retic le Colors


White, black, green, inverse color



Detection Range (1.7mX0.5m)

1200m

1000m



Weight (without battery)


<335g

<325g


Product Dimensions

(without eyeshade and picatinny)



112x68x50mm



108x68x50mm



Protection Level


IP67



Operating Temperature


- 20°C to + 50°C



Impact Resistance


1000G
